Application and Advantages of Ceramic Fiber Products in Rotary Kilns
With outstanding high-temperature resistance and thermal insulation properties, ceramic fiber products play a vital role in modern rotary kilns, mainly serving as furnace lining materials to improve equipment efficiency.
Below is a detailed overview of their applications and core advantages in rotary kilns.
1. Applications of Ceramic Fibers in Rotary Kilns
Ceramic fiber products are primarily used as refractory and thermal insulation linings for rotary kilns in various forms to ensure efficient and stable kiln operation.
Main Lining Material

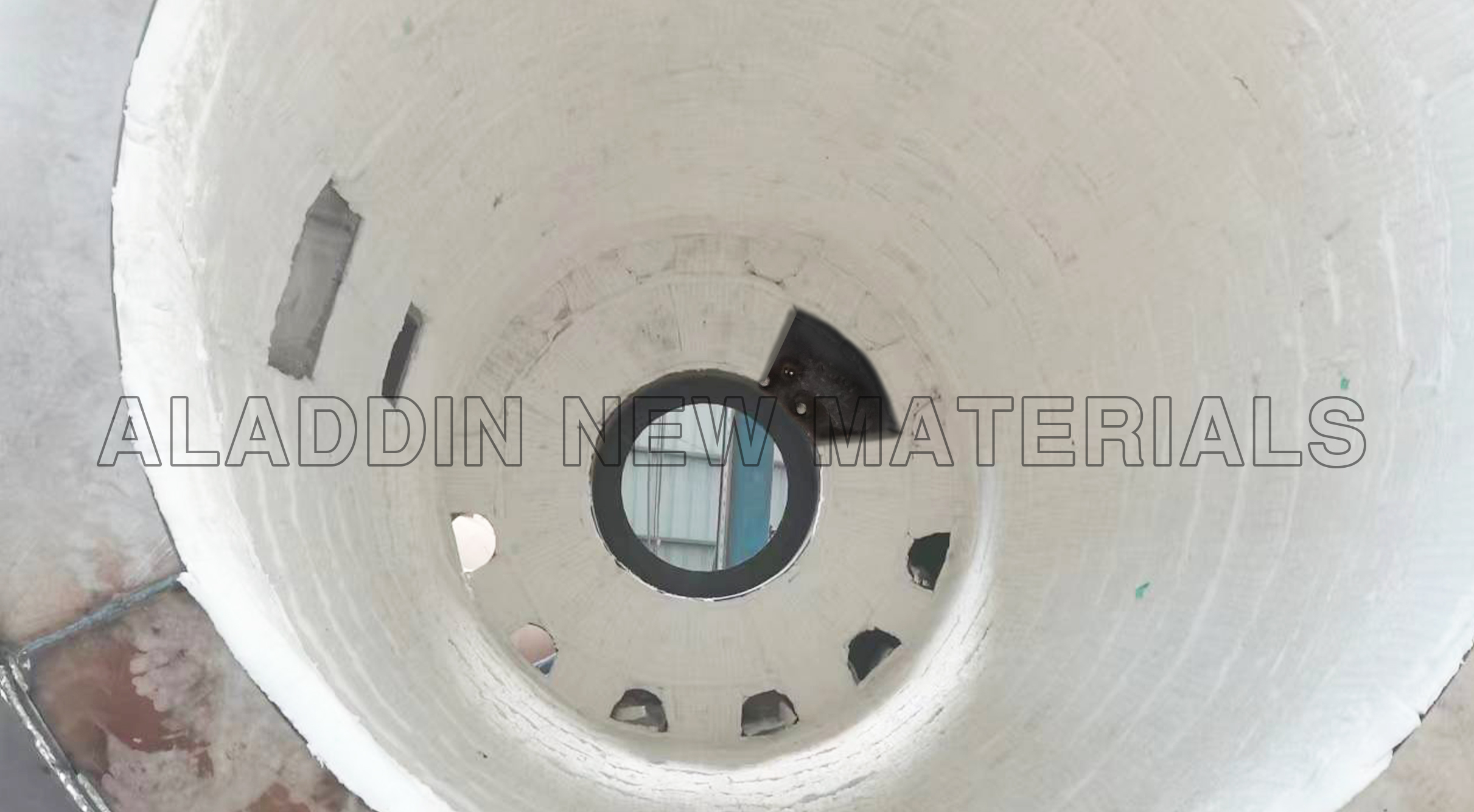

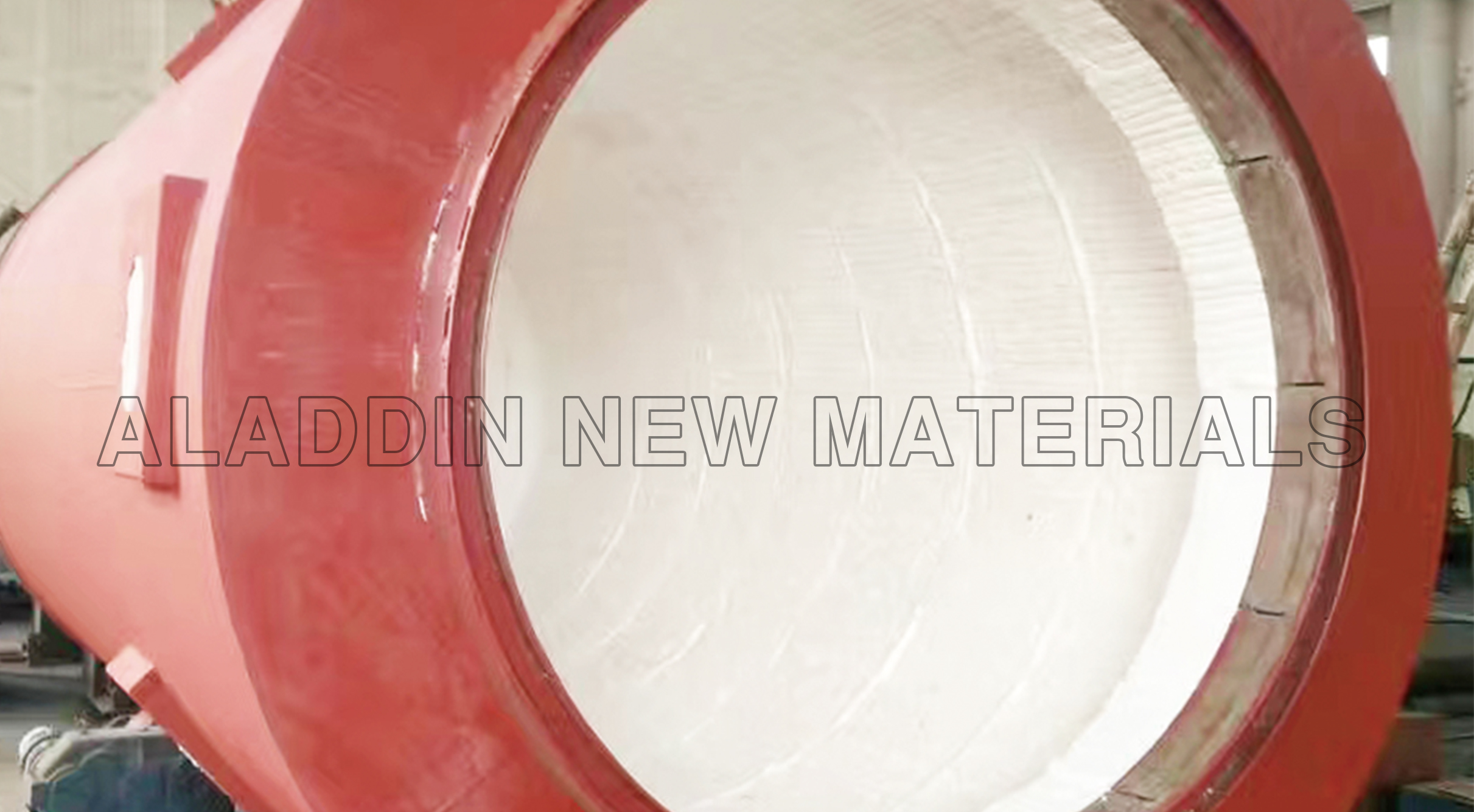

Ceramic fiber modules or folded blocks are directly fixed to the steel shell of rotary kilns via special anchoring systems to form an integral furnace lining. This installation method ensures tight compression of the lining in all directions and eliminates gaps.
Composite Multi-Layer Insulation
In some high-end and newly designed rotary kilns, ceramic fiber boards are composited with advanced thermal insulation materials to build multi-layer structures for further improved overall heat insulation performance.
Thermal Insulation Sheets and Fire Barriers for Critical Sections
Thanks to decent mechanical strength, ceramic fiber boards can be fabricated into custom shapes for filling expansion joints, partitioning internal zones, and acting as fire baffles inside rotary kilns.
2. Core Advantages of Ceramic Fiber Linings for Rotary Kilns
Adopting ceramic fiber linings delivers remarkable improvements in the following aspects:
Excellent Energy-Saving Performance
Ceramic fiber features low thermal conductivity that effectively cuts heat loss from kiln bodies, achieving an energy saving rate of 30%–50% compared with traditional refractory brick linings.
In addition, ceramic fiber linings have low heat capacity, meaning the kiln absorbs and stores less heat during heating. More heat energy is directly utilized to heat raw materials, which greatly reduces energy consumption for processes requiring frequent startup/shutdown or rapid temperature rise.Improved Production Efficiency
Lightweight ceramic fiber linings with low heat storage enable much faster kiln heating. For example, a rotary kiln lined with ceramic fibers only takes 15–30 minutes to heat up from ambient temperature to 1000°C, shortening production cycles and boosting equipment utilization.
Precise Temperature Field Control
Ceramic fiber linings help maintain a uniform and stable internal temperature field. On one hand, superior thermal insulation minimizes uneven temperature distribution caused by heat dissipation. On the other hand, its low thermal inertia, when matched with advanced PID temperature controllers, supports high-precision temperature control within ±1°C, meeting strict process standards for temperature-sensitive materials.
Remarkable Lightweight Design & Extended Service Life
Ceramic fiber has far lower bulk density than conventional refractory bricks, reducing lining weight by around 50%. This simplifies equipment structures and lowers load requirements for supporting frameworks.Moreover, ceramic fiber boasts excellent thermal shock resistance, resisting cracking and spalling under drastic temperature fluctuations. It delivers longer service life and extended maintenance intervals. Enhanced Process Cleanliness
High-end industries such as new energy and electronic materials impose strict cleanliness standards on production equipment. When paired with full-metal isolation structures (e.g., ceramic inner liners), ceramic fiber kiln linings fundamentally prevent contamination of raw materials by metallic impurities from refractory materials and guarantee high purity of finished products.
Aladdin High Temperature Materials
With over 30 years of development, Aladdin High Temperature Materials Co., Ltd. is a professional ceramic fiber manufacturer integrating production, R&D and engineering development.We operate four major production bases across China located in Hebei, Shandong, Shanxi and Jiangsu, equipped with more than 10 production lines and an annual output exceeding 40,000 tons. All ceramic fiber products from Aladdin come with corresponding test reports and comply with national standards.If you are interested in our products, please send us a private message or type the word "Purchase" to obtain our contact information!
