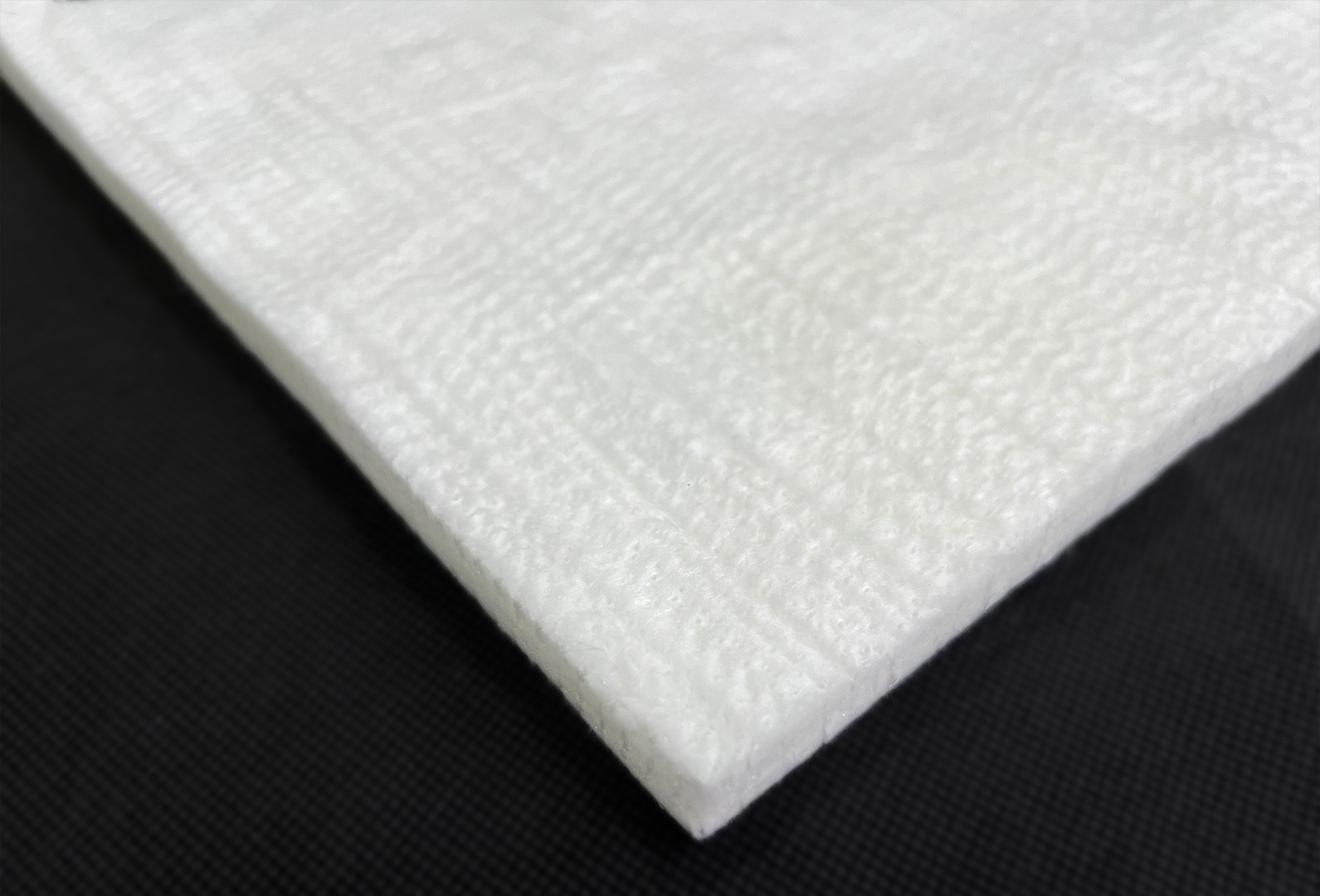

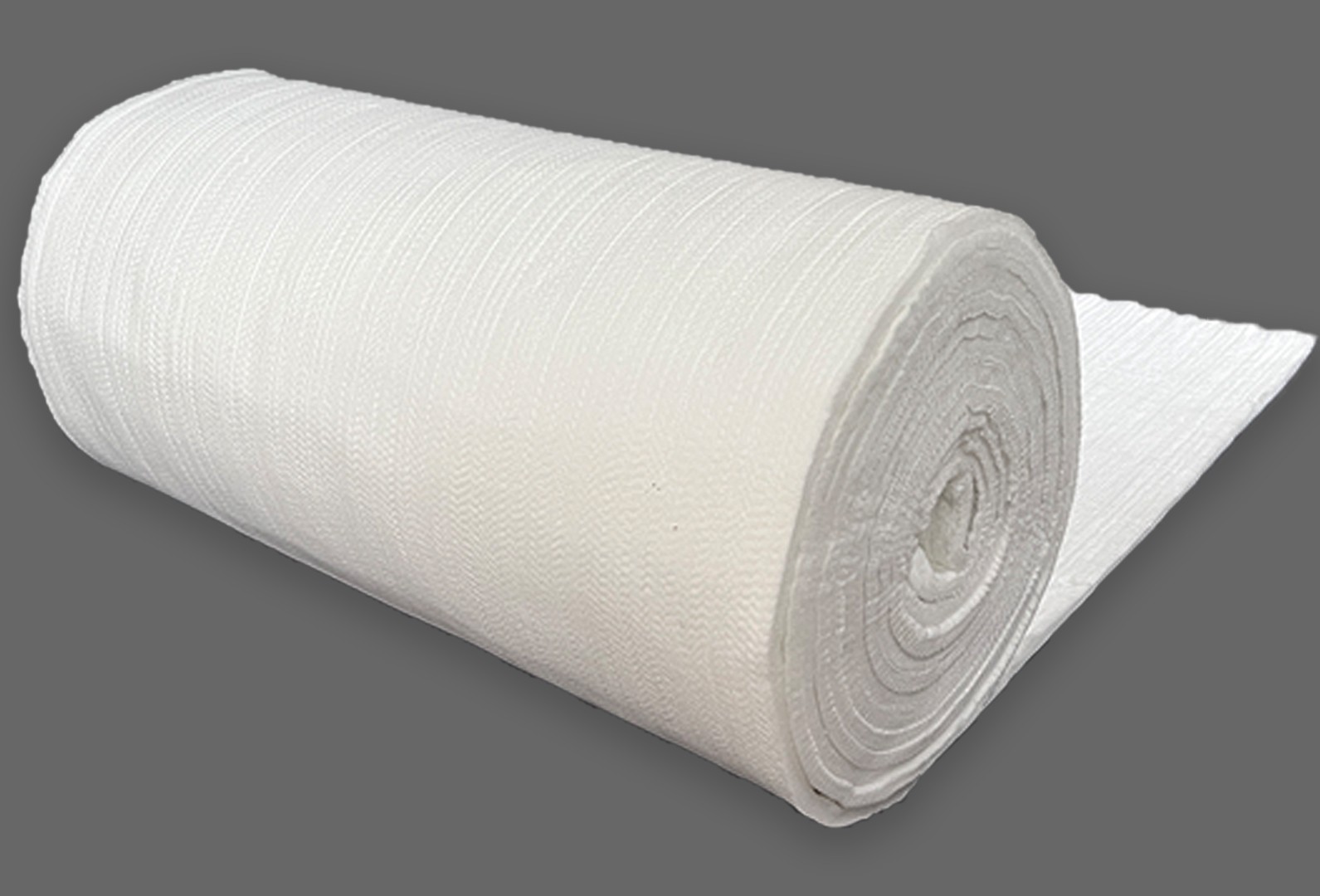

Aladdin alumina fiber needle blanket is made of inorganic materials, free from binders and other components.
It can be used at temperatures up to 1500℃ for a long term.

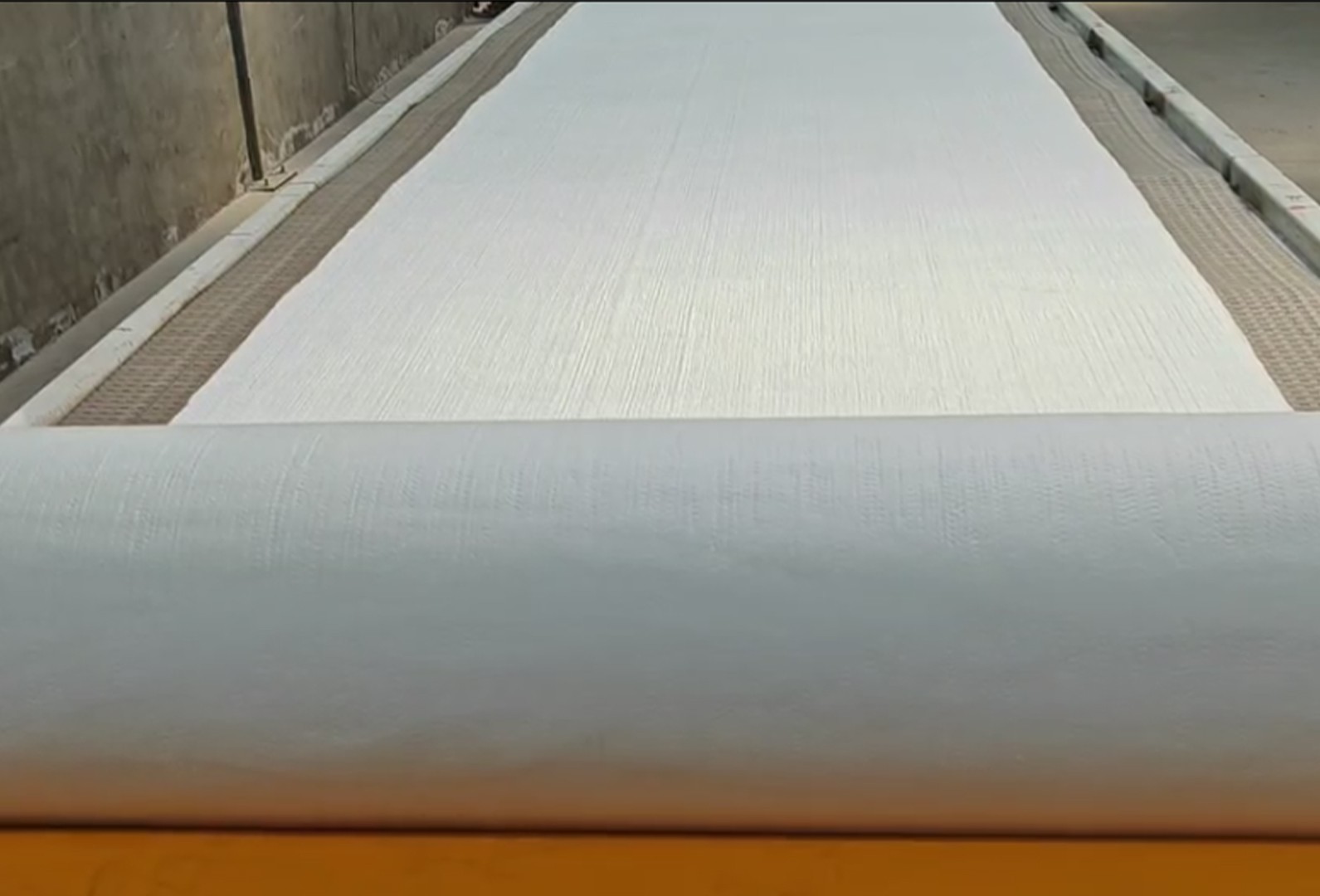

The enhanced double-sided needle-punching process improves the interweaving degree of the fibers and the product's delamination resistance, providing good tensile strength without compromising its softness.
Aladdin alumina fiber needle blanket is independently developed and produced, and it has a national patent.
| Product Name | ALD-1600-100 |
| Classification temperature(℃) | 1600 |
| Operating temperature(℃) | 1500 |
| Thermal Conductivity W/(m.k) | |
| 600℃ | 0.12 |
| 800℃ | 0.17 |
| 1000℃ | 0.22 |
| 1200℃ | 0.26 |
| Permanent line shrinkage （%）/(24 hours'insulation) | |
| 1300℃ | 0.3 |
| 1500℃ | 0.6 |
| Chemical composition(%WT) | |
| Al₂O₃ | 71-73 |
| Al₂O₃+SiO₂ | >99 |
| Specific heat capacity kj/(Kg·K)(1090℃) | 1.315 |
| Thickness tolerance(mm) | ±1 |
| Tensile strength(Kpa) | 80 |
| Buckling strength(mm) | R≤5 |
| Density(Kg/m³) | 128 |
| Product specification (mm) | 7200x610x10 |
| 7200x610x12.5 | |
| 7200x610x25 | |
| Special specifications can be customized according to customer requirements | |
High melting point, maintains complete fiber form even at 1600℃ in air environment.
Low thermal conductivity, only 10% of traditional refractory materials, ideal for aerobic thermal insulation and enhancement above 1200℃.
Soft and elastic material, suitable for high-temperature sealing.
High temperature and high strength, electrical insulation, oxidation resistance, corrosion resistance, non-hygroscopic, low thermal shrinkage rate, can be used in ultra-high temperature composite materials.
Excellent chemical stability.
Ultra-low thermal conductivity, strong thermal insulation performance.
Excellent tensile strength and resilience.
Excellent sound insulation and thermal shock resistance.
Various industrial furnace linings.
Ultra-high temperature internal insulation of pipes and external thermal insulation.
Ultra-high temperature environmental sealing.
Catalytic pads for exhaust gas of fuel vehicles.
High-temperature sintered gaskets made of metal or other materials.
Roller soft sleeves for float glass production lines.
Refractory materials for combustion chambers of motors and aircraft/rocket engines.
Insulation rings (discs and axial rings) for crystal growth furnaces in semiconductor manufacturin
