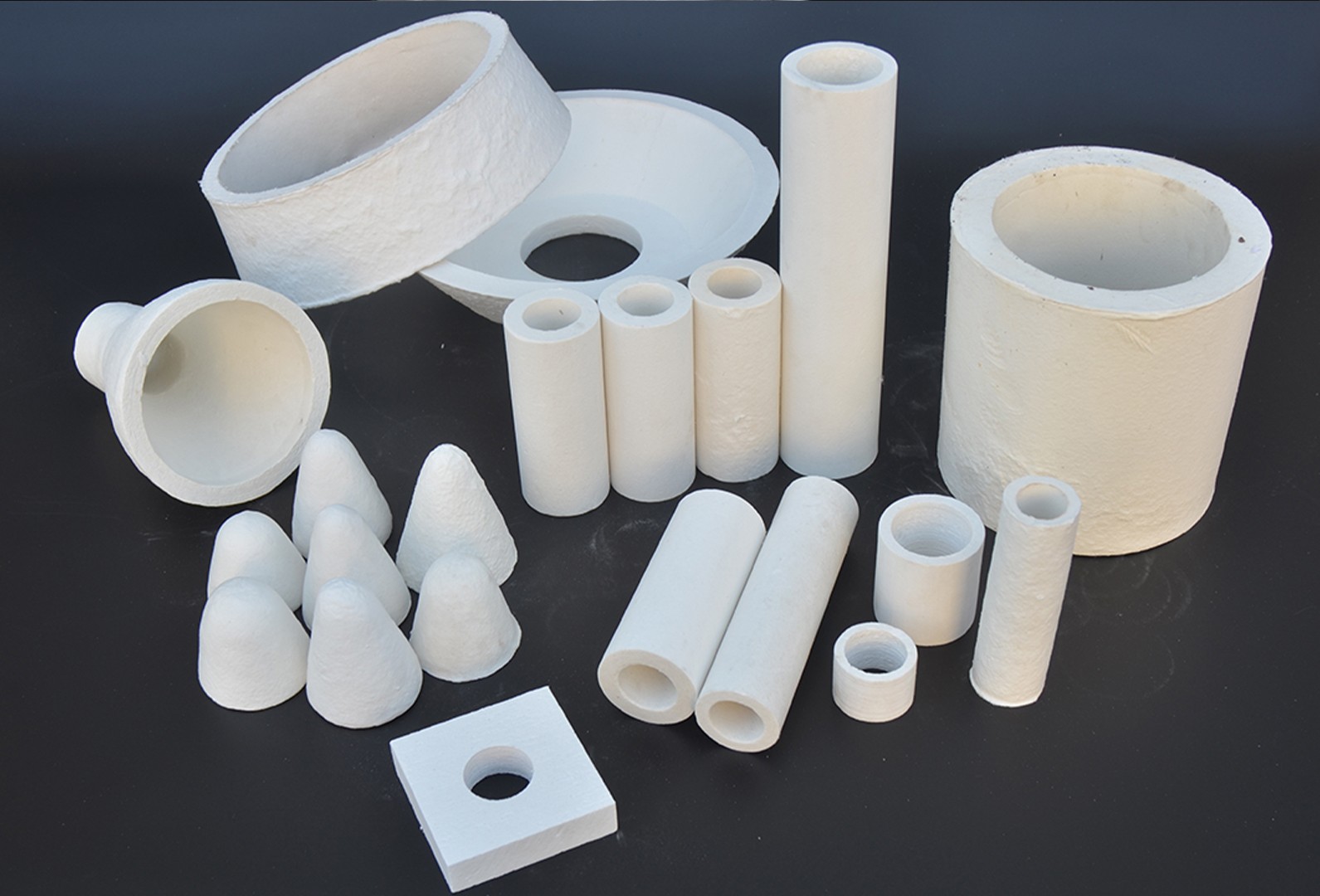

Vacuum forming fiber shaped product are the most technically advanced materials for installing or maintaining insulation linings in energy-intensive industrial equipment. The molded products are made from a mixture of ceramic fibers and are produced using a wet process vacuum forming.
these ceramic fiber-based refractory materials should be used when self-supporting rigid materials with high-temperature insulation are needed.
They are typically used for high-temperature sealing, thermal insulation, and foundry consumables.
| Product Name | ALD-STD | ALD-Zr | ALD-1600 |
| Recommended usage temperature (℃) | 1000 | 1250 | 1450 |
| Density(Kg/m³) | 300-600 | 300-600 | 400-600 |
| Permanent line shrinkage (%) | ≤3 (at1260℃x24h) | ≤3 (at1430℃x24h) | ≤1(at1450℃x24h) |
It has the ability to take on various shapes, high compressive strength, high temperature resistance, suitable density, low shrinkage rate, and ease of handling.
It should be noted that the working temperature of vacuum membrane molded products can vary greatly and directly depends on the material used for each specific material.
The temperature range is from 900℃to 1600℃.
Due to its excellent thermal physical properties, easy installation, and durability, the application of these materials can significantly reduce energy consumption.
Custom production based on drawings.
