Application and Advantages of Ceramic Fiber in Galvanizing Furnaces

1. Main Application Areas

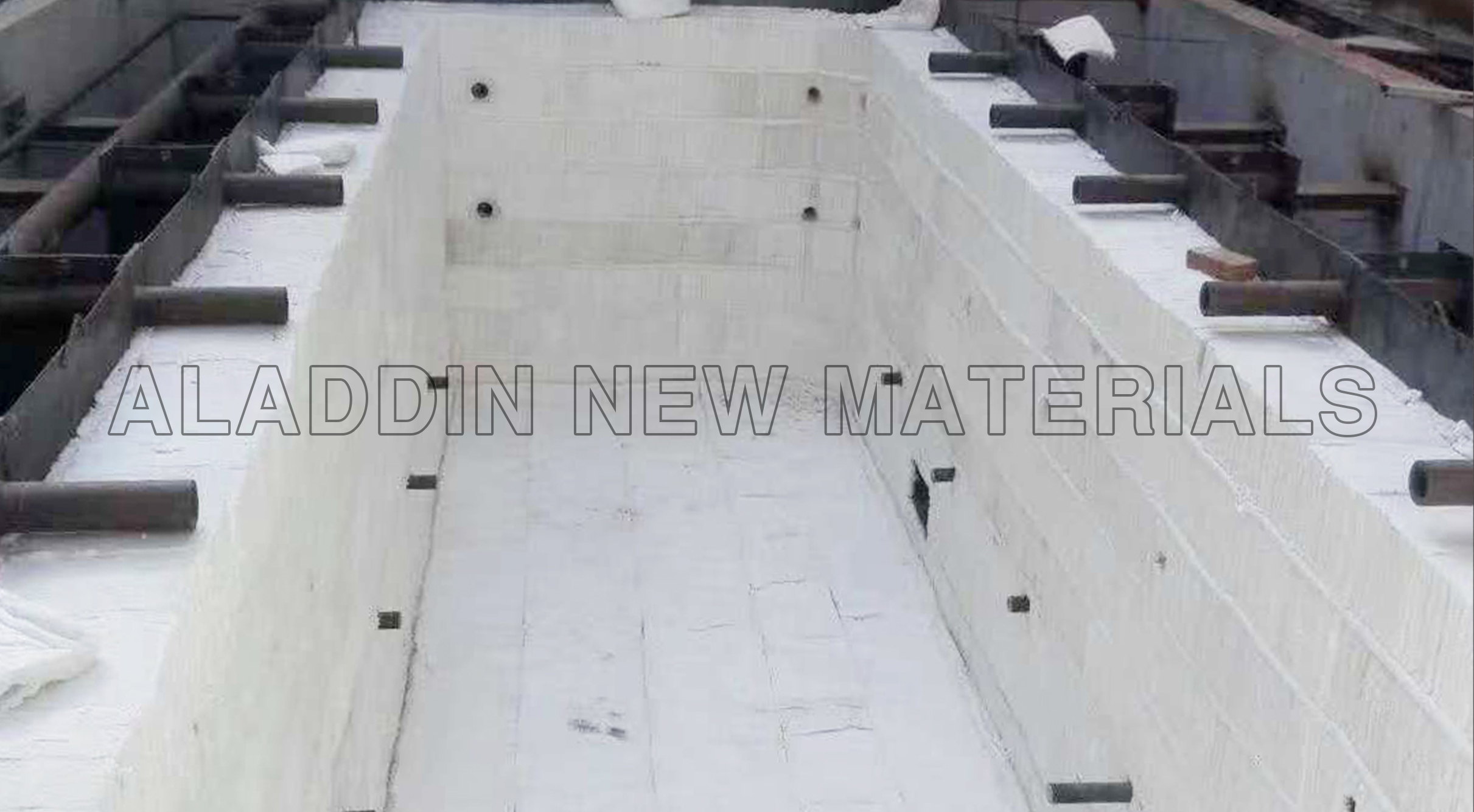

Furnace Insulation Lining: Used as an all-fiber lining for the walls and roof of galvanizing furnaces, effectively preventing heat loss and creating a uniform and stable temperature field inside the furnace.

Furnace Door Sealing and Insulation: Used as inner lining for furnace doors, reducing overall weight while enhancing sealing performance due to its flexibility, significantly minimizing heat leakage at the doors.

Radiation Shields and Firewalls: Leveraging its low thermal capacity and high reflectivity, it is used as radiation shields or firewalls to optimize heat flow distribution within the furnace and protect specific furnace structures.

Sealing Materials and Filling: Manufactured in forms such as paper or blankets, used for expansion joint sealing and module joint filling to ensure the airtightness of the furnace, preventing any leakage.

2. Core Advantages

Excellent energy-saving and consumption-reducing effects:

The extremely low thermal conductivity of ceramic fiber creates a strong thermal barrier, significantly reducing heat loss from the furnace body. Its outstanding insulation performance allows furnace walls to be designed thinner, or achieve higher internal temperatures at the same external wall temperature, directly leading to reduced fuel consumption.

Significantly improves heating speed and production efficiency:

The material itself is lightweight with low heat capacity, greatly reducing the heat accumulated in the furnace. During periodic start-stop or heating cycles of galvanizing furnaces, it can quickly reach the set process temperature, shortening waiting times and thereby improving overall production rhythm and efficiency.

Excellent thermal shock resistance and mechanical vibration adaptability:

The fibrous structure gives the material flexibility and elasticity, enabling it to withstand severe temperature fluctuations without cracking or spalling. For mechanical vibrations that may occur during galvanizing furnace operation, ceramic fiber linings have stronger adaptability compared to traditional dense refractory bricks, offering better structural stability and longer service life.

Strong chemical stability, extending service life:

 It can resist corrosion from zinc vapor and the furnace atmosphere, is less prone to chemical reactions, and maintains the integrity of the material structure, ensuring long-lasting durability of the furnace lining.

Reduces furnace load and simplifies structural design:

Its lightweight properties significantly reduce the steel structure load of the galvanizing furnace, allowing simplification of foundations and support structures, and lowering initial construction costs.

Convenient construction and maintenance:

Modular installation is simple and quick, greatly shortening construction time. In case of partial damage, repair or replacement is very convenient without the need for large-scale furnace shutdowns, reducing maintenance costs and time.

The application of ceramic fiber in galvanizing furnaces is a wise choice for achieving efficient, energy-saving, and stable production. Its excellent thermal insulation performance, rapid thermal response, outstanding structural stability, and long-lasting durability provide a solid and reliable solution for the galvanizing process, ultimately helping enterprises achieve the dual goals of cost reduction and efficiency improvement as well as enhanced product quality.
