The Role of Choosing Ceramic Fiber Fireproof Wrapping in Exhaust Ducts

In building fire protection systems, smoke exhaust ducts are the 'lifeline' during a fire, responsible for quickly removing hot and toxic smoke.

Core Application:

The application of ceramic fiber in smoke exhaust ducts mainly revolves around the following key scenarios, aiming to address specific safety issues:

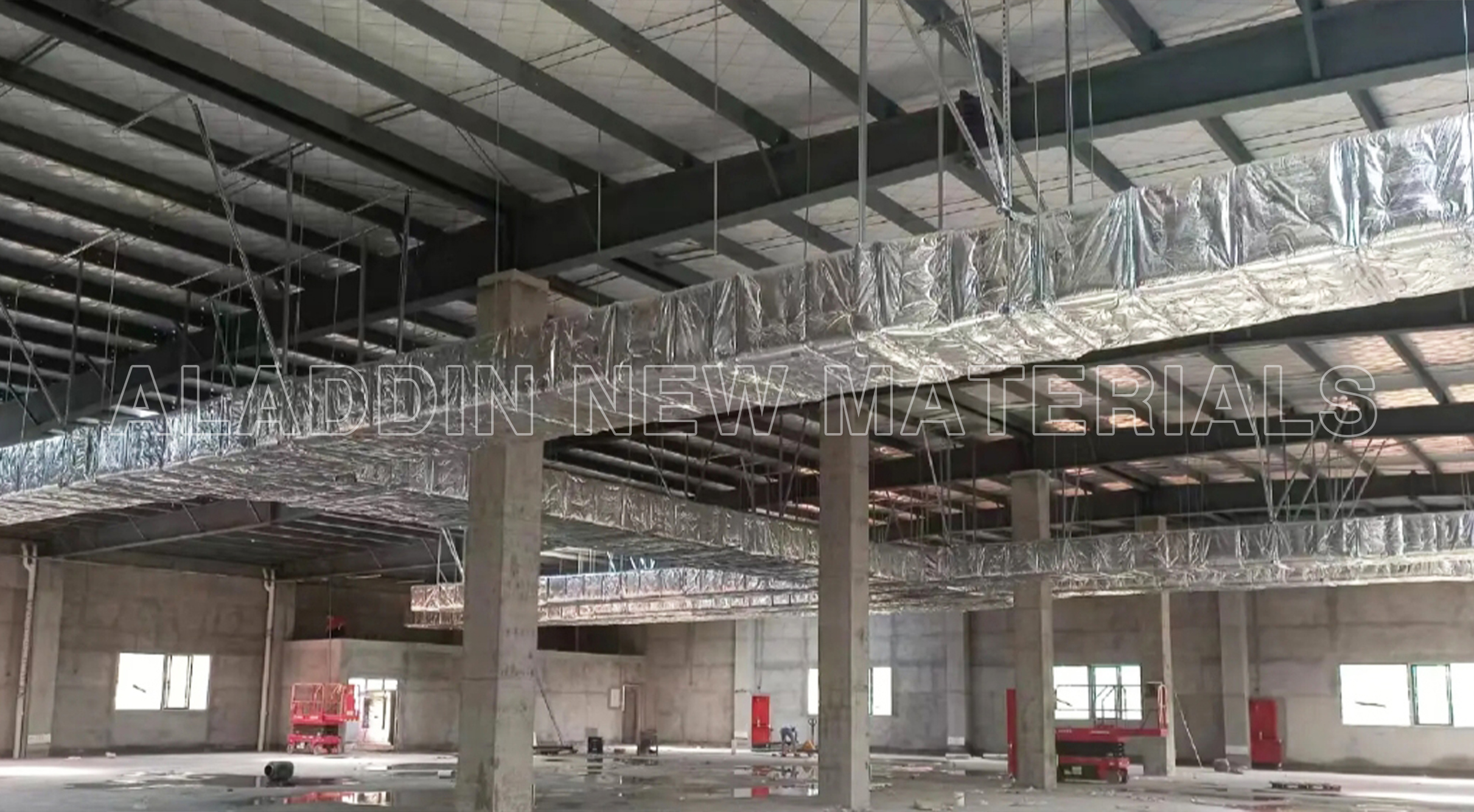

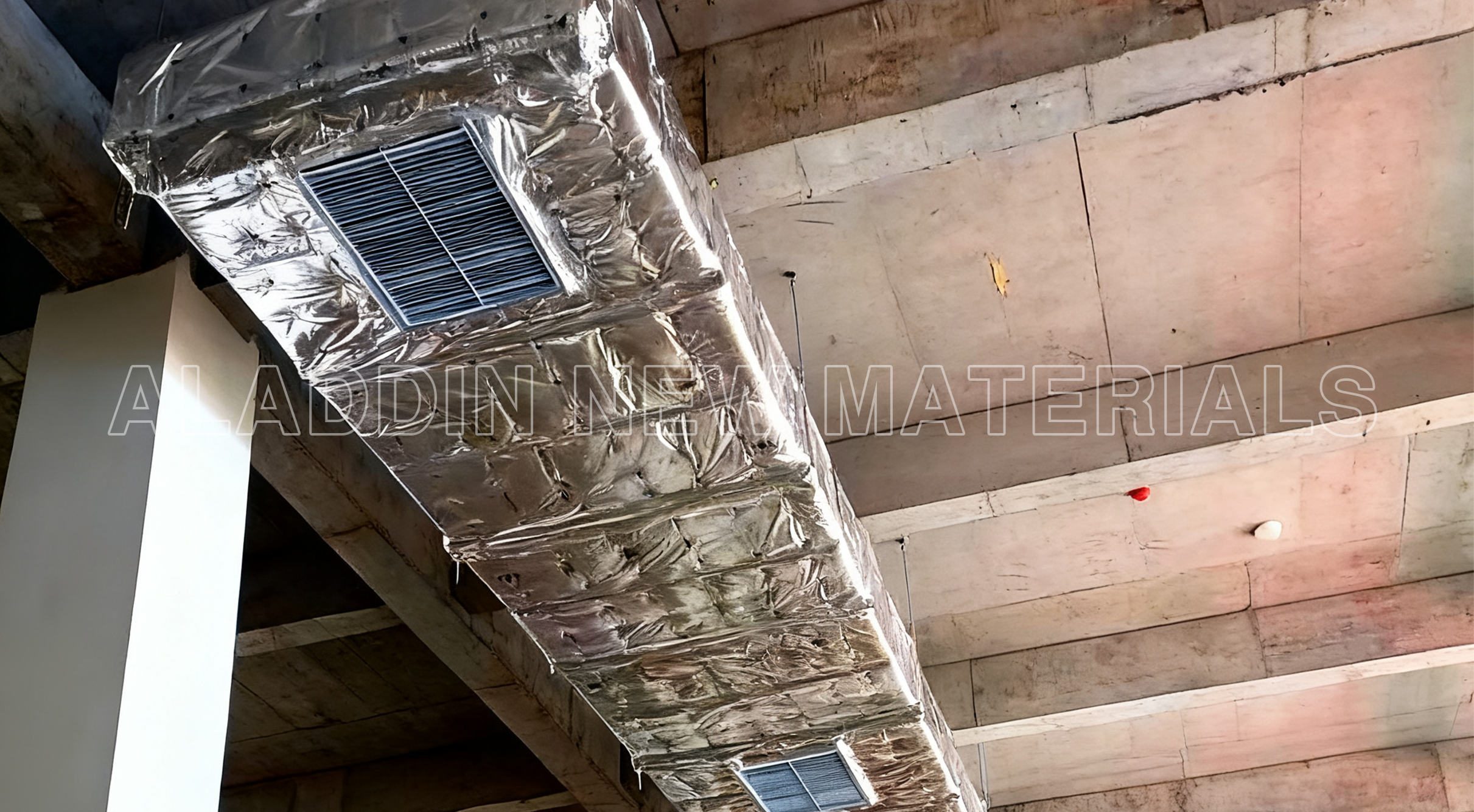

1. Ensuring Structural Integrity (Prevent Collapse)Application scenario: Wrapping the main body of smoke exhaust ducts, especially the sections passing through large spaces.Principle: During a fire, the smoke exhaust ducts continuously carry high-temperature smoke ranging from 300°C to 600°C or even higher. Ordinary metal ducts lose strength sharply at high temperatures (steel strength significantly decreases above 540°C), which may lead to softening, warping, or collapse of the ducts. Ceramic fiber wrapping, with its very low thermal conductivity, effectively insulates against heat, ensuring that the metal structure of the ducts maintains sufficient structural strength for the required fire resistance period (e.g., 60, 90, 120 minutes), preventing the collapse of ducts from blocking "lifelines."

2. Maintaining Fire Separation Integrity (Prevent Spread)Application scenario: Key wrapping of duct sections passing through firewalls, floors, and other fire-separating components.Principle: Metal ducts are excellent conductors of heat. Without protection, high temperatures during a fire can quickly transfer through the duct walls to non-burning areas on the other side, forming a "thermal bridge," which may ignite combustible materials on that side and lead to fire spread. Ceramic fiber wrapping effectively cuts off the thermal bridge here, ensuring that firewalls and floors maintain their fire separation performance despite the duct penetration.

3. Ensuring System Functionality (Maintain Efficiency)Application scenario: Wrapping the entire smoke exhaust system, including ducts, valves, and flexible connections.Principle: Deformation or collapse of the ducts directly alters internal aerodynamic characteristics, increasing resistance and reducing smoke exhaust efficiency or even causing system failure. Ceramic fiber wrapping maintains the duct shape, ensuring that the smoke exhaust system continues to operate efficiently during critical fire periods, providing clear visibility and safe passages for evacuation and firefighting.

4. Preventing Secondary Hazards (Prevent Ignition)Application scenario: Areas near or traversed by smoke ducts where combustible materials are present.Principle: The wrapping layer significantly reduces the duct surface temperature. Whether from heat conducted from high-temperature smoke inside or heat from external flames, ceramic fiber keeps the exterior temperature within a safe range, preventing neighboring combustible materials from igniting and avoiding secondary fires.

Unique Advantages:

The material properties of ceramic fiber give it irreplaceable advantages in fire protection for smoke exhaust ducts:

1. Extreme High-Temperature ResistanceCeramic fiber itself can operate continuously in environments above 1000°C and withstand short-term temperatures of 1400-1600°C. This fully covers and far exceeds the maximum temperatures that smoke exhaust ducts may encounter in a fire, ensuring stable performance under extreme conditions without melting or failure.

2. Excellent Thermal InsulationWith an extremely low thermal conductivity, it serves as a highly efficient thermal barrier. This means that a relatively thin layer is sufficient to achieve the required fire resistance, providing effective fire protection in limited spaces while minimizing the impact on building space.

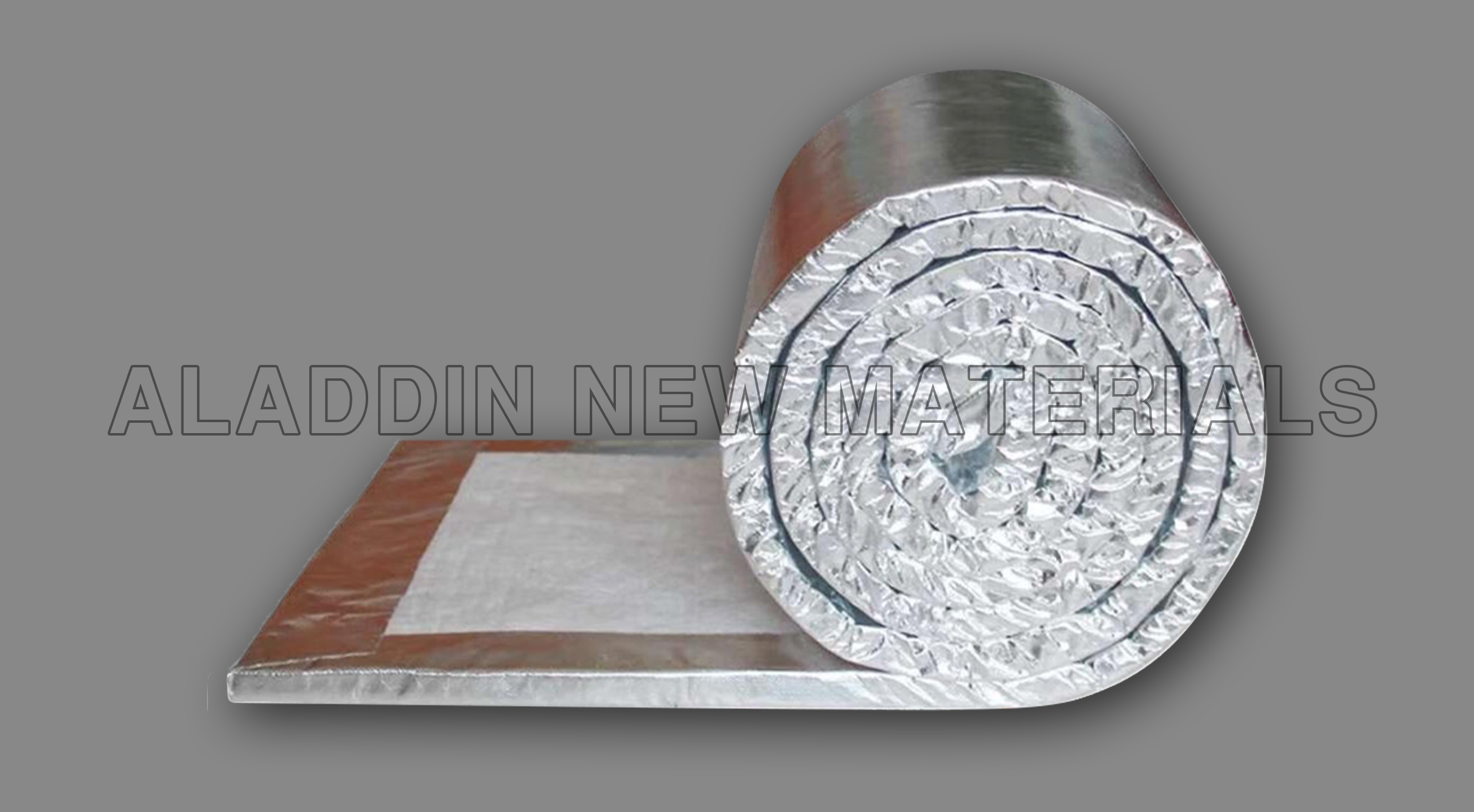

3. Lightweight, Flexible, and Easy to InstallCompared with heavy traditional fireproof boards, ceramic fiber blankets/mats are very light and do not add significant load to pipes or building structures. Their outstanding flexibility allows them to perfectly wrap complex pipe components, valves, elbows, and tees, providing seamless, comprehensive protection and enabling quick and flexible installation.

4. Exceptional Thermal Shock ResistanceThey can withstand sudden and severe temperature changes from room temperature to high heat during a fire without cracking, peeling, or powdering. This is crucial for responding to unexpected fires, ensuring the integrity and reliability of the protective layer under thermal shocks.

5. Chemical Stability and Environmentally SafeCeramic fiber is a Class A non-combustible material that does not burn or produce toxic black smoke at high temperatures. It has strong resistance to chemical corrosion and can withstand acidic substances that may be present in smoke, ensuring a long service life.

Ceramic fiber fireproof wraps, through their proactive and comprehensive protective application, transform smoke exhaust ducts from a potential "weak link" in the fire protection system into a solid and reliable "safety barrier." Their material advantages directly translate into certainty in safeguarding lives, making them an indispensable key technology and material in modern building fire protection design.
