Application and Advantages of Ceramic Fiber in Annealing Furnaces

Ceramic fiber, as an advanced refractory insulation material, plays a central role in the design and renovation of modern annealing furnaces, fundamentally enhancing furnace performance through its unique material properties.

Core Advantages:

1. Excellent Energy-Saving PerformanceCeramic fibers have an extremely low thermal conductivity, which means they serve as a highly efficient thermal barrier, greatly reducing heat loss from the furnace. At the same time, their low heat capacity allows them to absorb much less heat during heating compared to traditional refractory bricks. The combination of these factors enables annealing furnaces lined with ceramic fibers to typically reduce overall electricity consumption by 30% to 60%, demonstrating highly significant energy-saving effects.

2. Improved Process Stability and Product QualityCeramic fiber furnace linings can be designed and constructed with precision to create a highly uniform temperature field within the furnace. This is crucial for the annealing process, ensuring that workpieces are heated evenly, thereby guaranteeing stability and consistency in product quality. Their excellent thermal shock resistance also allows them to withstand unavoidable temperature fluctuations during operations without cracking due to rapid heating or cooling, extending the service life of the furnace lining.

3. Lightweight Design and Fast ResponseCeramic fibers are extremely lightweight, roughly only one-tenth the weight of traditional refractory bricks. This simplifies the steel structure of the entire annealing furnace and reduces the load on the foundation. More importantly, the low heat storage of lightweight linings allows the furnace to heat up much faster from a cold state to working temperature, enhancing production scheduling flexibility, which is particularly suitable for batch-type furnaces.

4. Simplified Installation and MaintenanceCeramic fibers are usually installed in a modular form. These modules can be quickly anchored to the furnace shell like building blocks, and once installed, they are tightly pressed together to form a seamless overall lining. This structure not only provides excellent sealing but also eliminates the need for the lengthy firing process required by traditional materials, allowing the furnace to be quickly ignited and put into operation after installation, greatly reducing construction and maintenance time.

Main Forms of Application:

In annealing furnaces, ceramic fibers are mainly used in the following forms to build a complete high-performance insulation system:

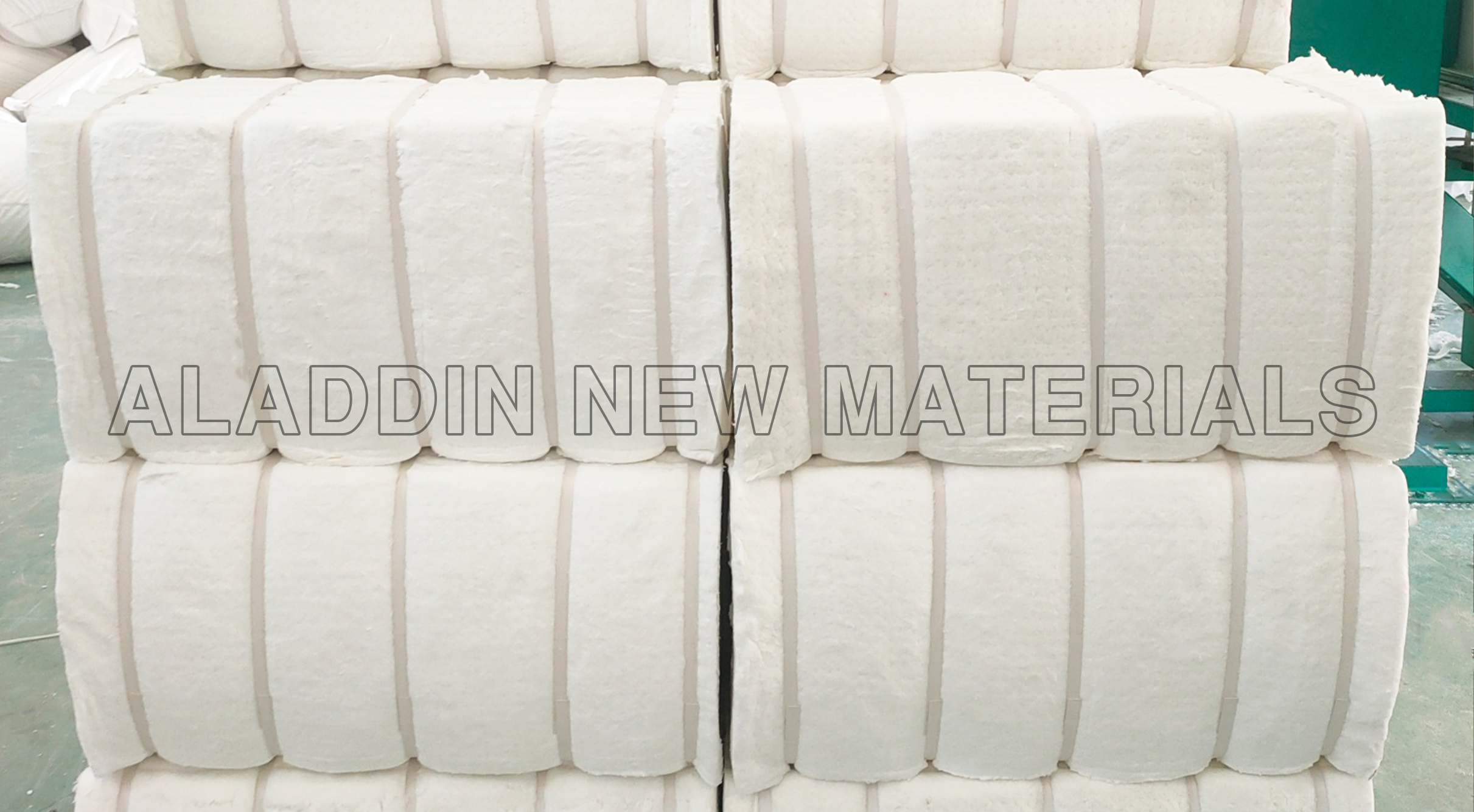

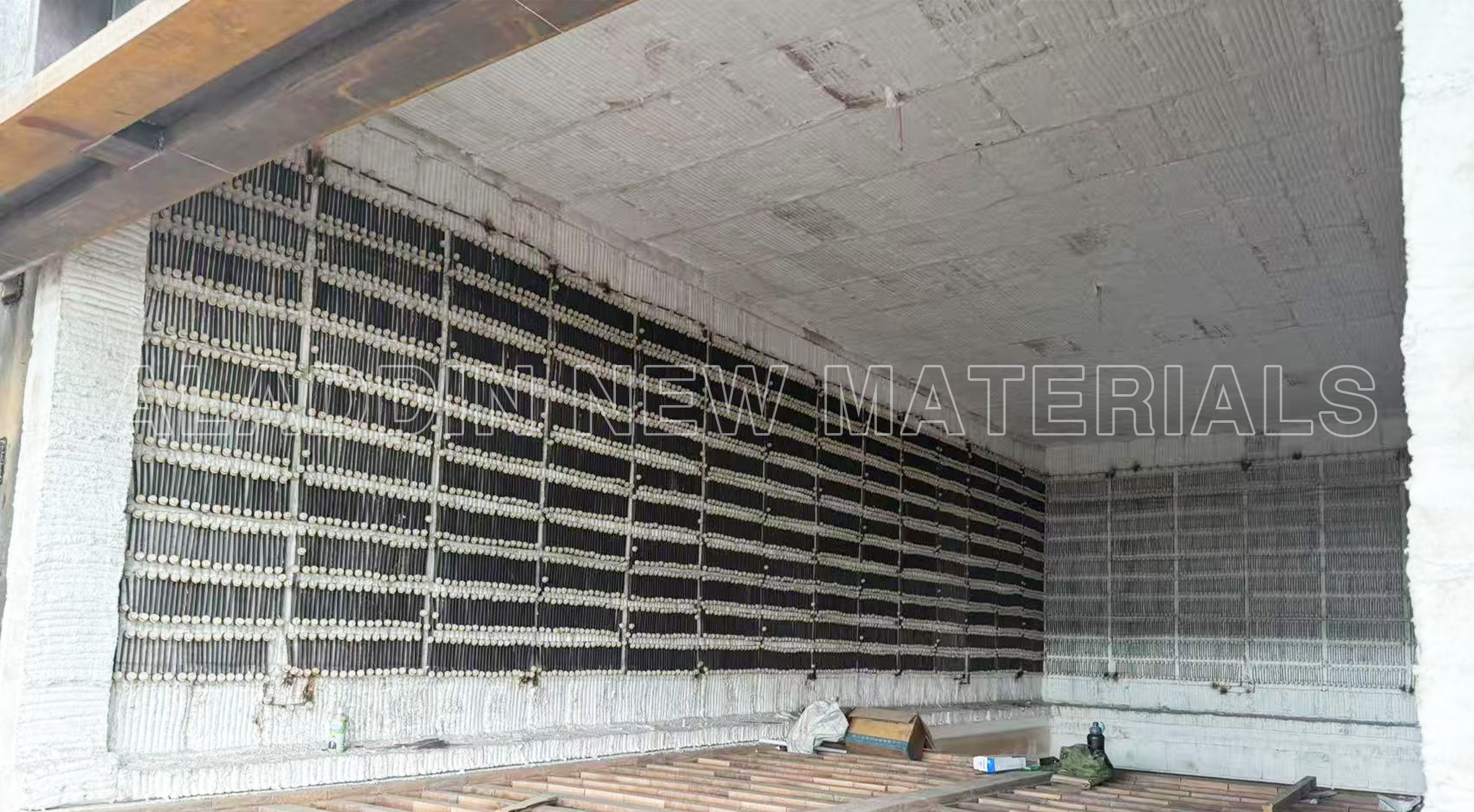

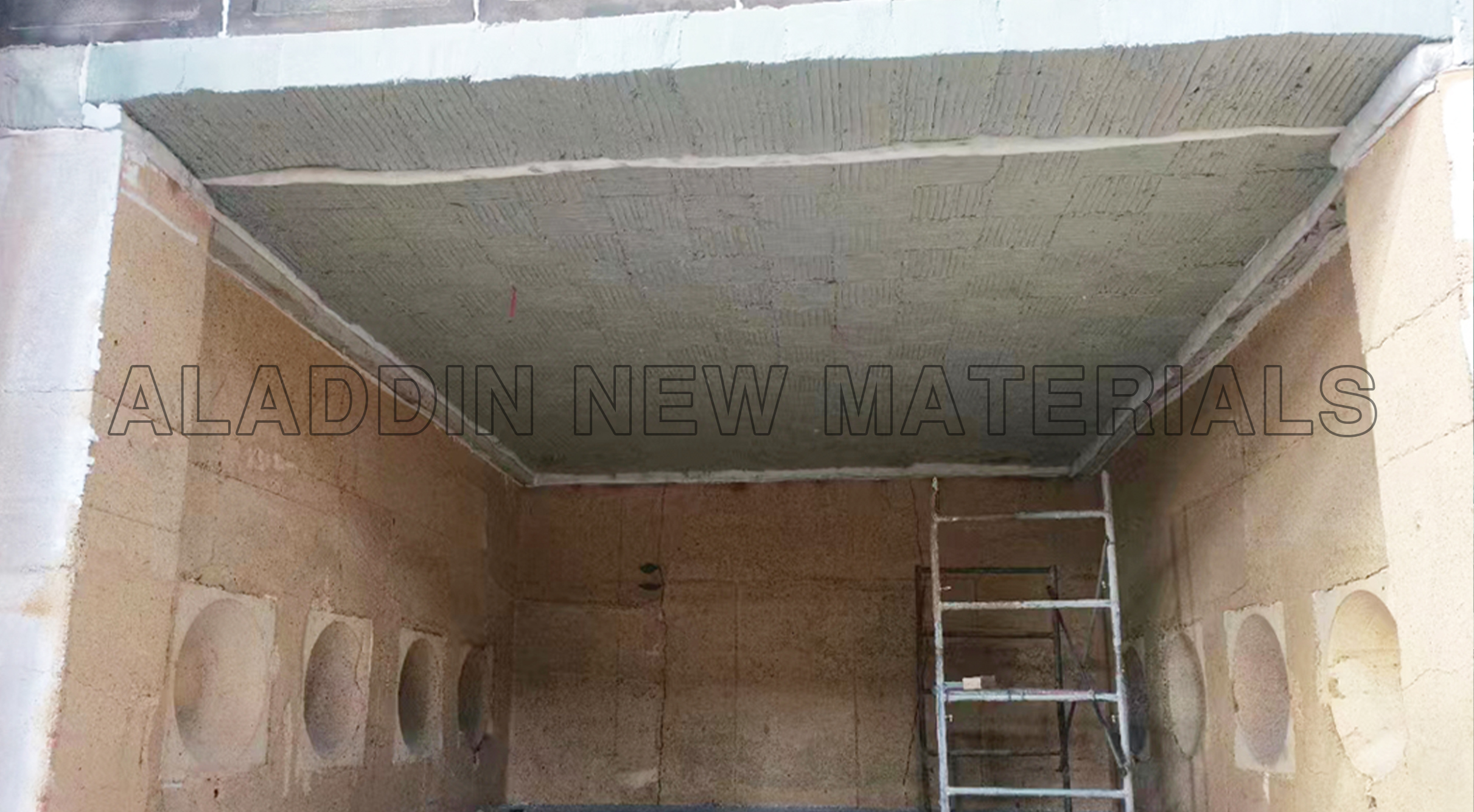

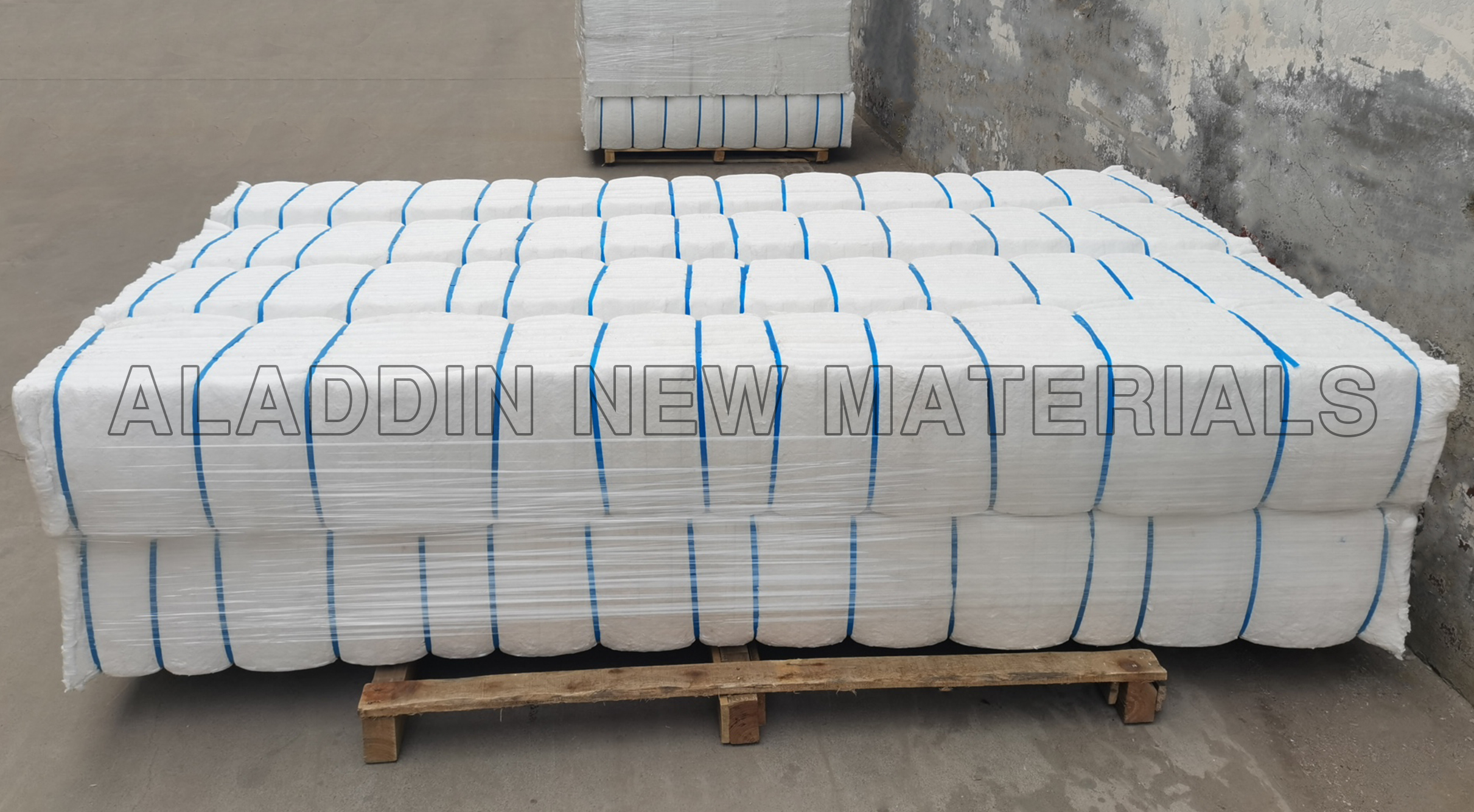

1. Furnace lining main structure: The most common method is using folded ceramic fiber modules as the main structure of the furnace walls and roof. They are easy to install and expand after unbinding, forming a seamless, solid lining that effectively prevents heat from leaking through gaps.

2. Composite insulation layer: In practical applications, a composite structure of 'ceramic fiber modules + ceramic fiber backup blanket' is commonly used. The modules provide the primary defense against high temperatures, while the backing blanket further enhances the overall insulation effect, with its thickness determined according to thermal calculations.

3. Comprehensive applicability: This ceramic fiber furnace lining solution can be widely applied to various types of annealing furnaces, including car-type annealing furnaces, roller hearth annealing furnaces, hood-type annealing furnaces, and glass annealing furnaces with stringent requirements.

Selection and Usage Key Points:

To ensure optimal performance, pay attention to the following when selecting and using:

1. Temperature rating match: Be sure to choose the appropriate ceramic fiber type according to the maximum operating temperature of the annealing furnace. For example, standard type (1260°C) is suitable for conditions around 1050°C, while higher temperature scenarios require high-grade materials such as zirconia-containing type (1400°C).

2. Focus on construction quality: The final performance of the furnace lining is closely related to installation quality. It is necessary to ensure that anchors are firmly welded and accurately positioned, and that modules are tightly compressed, in order to achieve the designed insulation performance and long-term service life.

Ceramic fiber, with its outstanding advantages of energy saving, efficiency, stability, and convenience, has become the preferred material for upgrading and constructing modern annealing furnaces. It not only reduces operating costs but also provides a solid guarantee for product quality by improving process levels.
