Ceramic Fiber Paper: The Thinnest Product with an Irreplaceable Status
Within Aladdin’s full lineup of ceramic fiber products, blankets, boards and modules always take the spotlight thanks to their bulky size and extensive application scenarios.
Yet there exists another product: ceramic fiber paper, thin enough for light transmission and lightweight enough to flutter gently. It forms an impenetrable safety barrier for high-temperature equipment in sealing, electrical insulation and thermal insulation applications.
I. Paper-Thin Texture, Excellent Resistance to Temperatures up to Thousands of Degrees

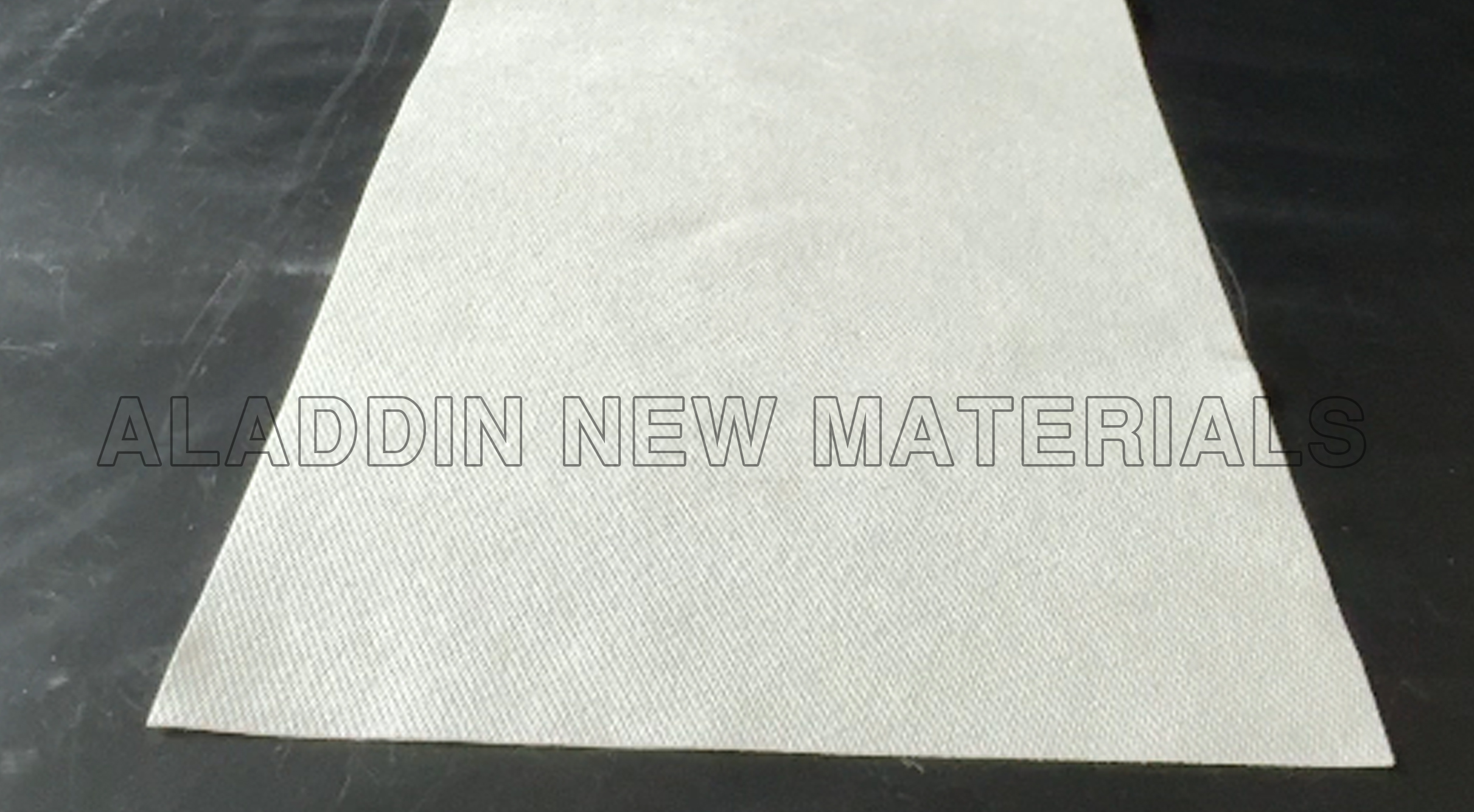

Ceramic fiber paper is manufactured from refractory fiber. With a thickness ranging from 0.5 mm to 12 mm and a bulk density of 200 kg/m³, it features flexible texture for easy bending and cutting.
The standard grade withstands continuous temperature up to 1100°C, while the zircon-containing grade can reach 1350°C. Its thermal conductivity is only 0.087 W/(m·K) at 600°C, delivering outstanding heat insulation performance.
II. Core Advantages of Premium-Grade Ceramic Fiber Paper
Six core strengths define Aladdin ceramic fiber paper:
Ultra-Thin: Starting thickness of 0.5 mm, perfectly suited for narrow and demanding gap filling.
Lightweight: Low bulk density brings no extra load to equipment.

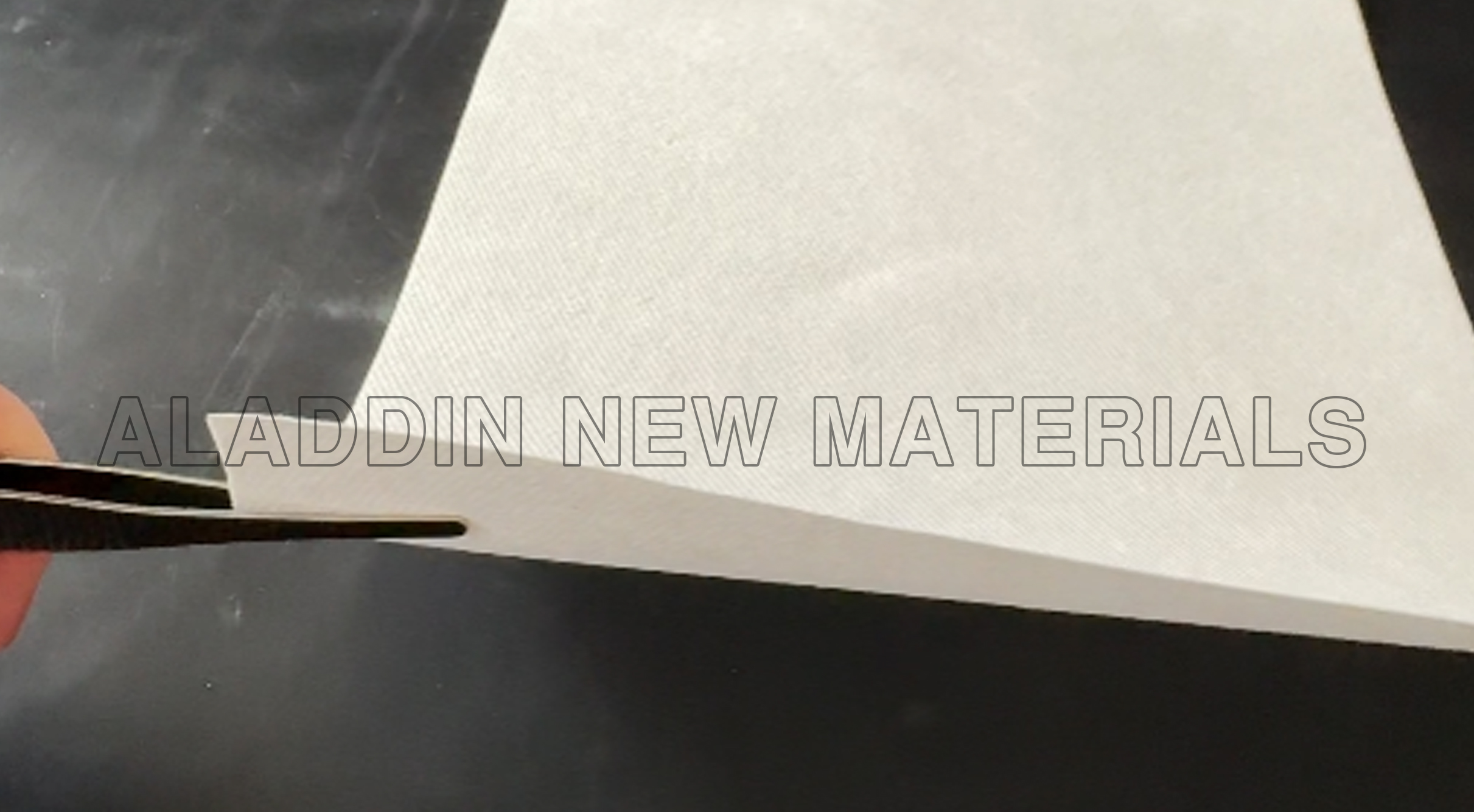

Flexible: Supports bending, wrapping and customized cutting for superior processability.
High Temperature Resistance: Maintains structural integrity above 1000°C.
Dense Structure: Even fiber distribution delivers reliable sealing performance.
Outstanding Stability: Excellent chemical stability and thermal shock resistance, free from pulverization under high heat.
Note: Minor smoke emission or temporary flame during initial use is a normal phenomenon caused by volatilization of organic binders. The paper will turn pure white once binders are fully burned off, with no degradation to overall performance.
III. Compact Size, Powerful Functionality
High-Temperature Sealing Gaskets: Core sealing material for flanges, furnace doors and pipeline joints. Capable of die-cutting into arbitrary shapes, non-toxic and eco-friendly, with superior temperature resistance and sealing effect.
Electrical Insulation & Heat Shielding: Installed inside ovens, induction cookers and wall-hung boilers as insulation layers for heating elements to prevent surface overheating.
Expansion Joint Filling: Fills gaps between refractory bricks in industrial kilns for sealing and adaptive compensation of thermal expansion.
Glass Release Agent: Prevents adhesion during production of microcrystalline glass and hot-bent glass; also serves as anti-sintering spacer pads for ceramic firing.
Automotive Thermal Insulation: Insulation liners for exhaust pipes and mufflers to protect surrounding components.
Diversified Extended Applications: Thermal gaskets for denitrification catalysts, thin heat insulation pads for electronic products, high-temperature sealing strips for fire doors, and more emerging application scenarios.
Ceramic fiber paper may be the most inconspicuous member in the ceramic fiber product family.However, it plays an indispensable role in countless working conditions including high-temperature sealing, electrical insulation, expansion joint filling, glass demolding and automotive heat insulation.
Backed by over 40 years of technical accumulation, we operate four production bases with more than 30 production lines and an annual output exceeding 200,000 tons. Aladdin ceramic fiber paper features uniform fiber distribution, low shot content and precise dimensional tolerance. Customization services are available for customized width, thickness and special-shaped die-cut pieces.
Aladdin High Temperature Materials Co., Ltd. is a professional ceramic fiber manufacturer with over 40 years of development experience, integrating production, R&D and engineering development. We own four domestic production bases located in Hebei, Shandong, Shanxi and Jiangsu, equipped with over 30 production lines and an annual output of more than 200,000 tons.
All Aladdin ceramic fiber products are accompanied by formal test reports complying with national standards. If you are interested in our products, please contact us via private message or send the keyword "Purchase" to obtain our contact information.
