Pipeline thermal insulation has long been a stubborn pain point for the petrochemical industry.
Steam pipelines, high-temperature oil pipelines, cracking gas pipelines, denitrification flues and other pipework are either installed overhead or closely attached to process equipment with irregular geometries. Elbows, valves and flanges can be found everywhere. Traditional rigid refractory insulation blocks require repeated cutting and splicing during construction, leading to unavoidable gaps that cause massive heat loss. Worse still, maintenance calls for destructive dismantling of the insulation layer and full rework afterwards — this process is highly time-consuming, labor-intensive and cost-prohibitive.
Aladdin delivers the perfect solution to all these headaches!
1. Three Major Bottlenecks Restricting Petrochemical Pipeline Insulation
Challenge 1: Complex Geometric Profiles
Pipelines are far from straight runs. Elbows, tees, flanges, valves, reducers and other irregular fittings form hard-to-insulate dead zones, where rigid insulation materials fail to achieve seamless fitting.
Challenge 2: Extreme Operating Temperatures
Operating temperatures range from 300°C for steam pipelines to over 1000°C for cracking gas pipelines. Insulation materials must deliver outstanding high-temperature resistance and stable long-term service performance.
Challenge 3: Frequent Scheduled Maintenance
Petrochemical facilities require periodic overhaul, which means repeated removal and reinstallation of insulation cladding. Conventional rigid insulation is monolithic and non-reversible; every maintenance overhaul demands a complete re-insulation project.
2. Aladdin’s Combined Solution: Ceramic Fiber Blanket + Custom Shaped Components
To tackle harsh working conditions of petrochemical pipelines, Aladdin launches a synergistic two-product solution.
Main Insulation Material: Ceramic Fiber Blanket for Large-Area Coverage

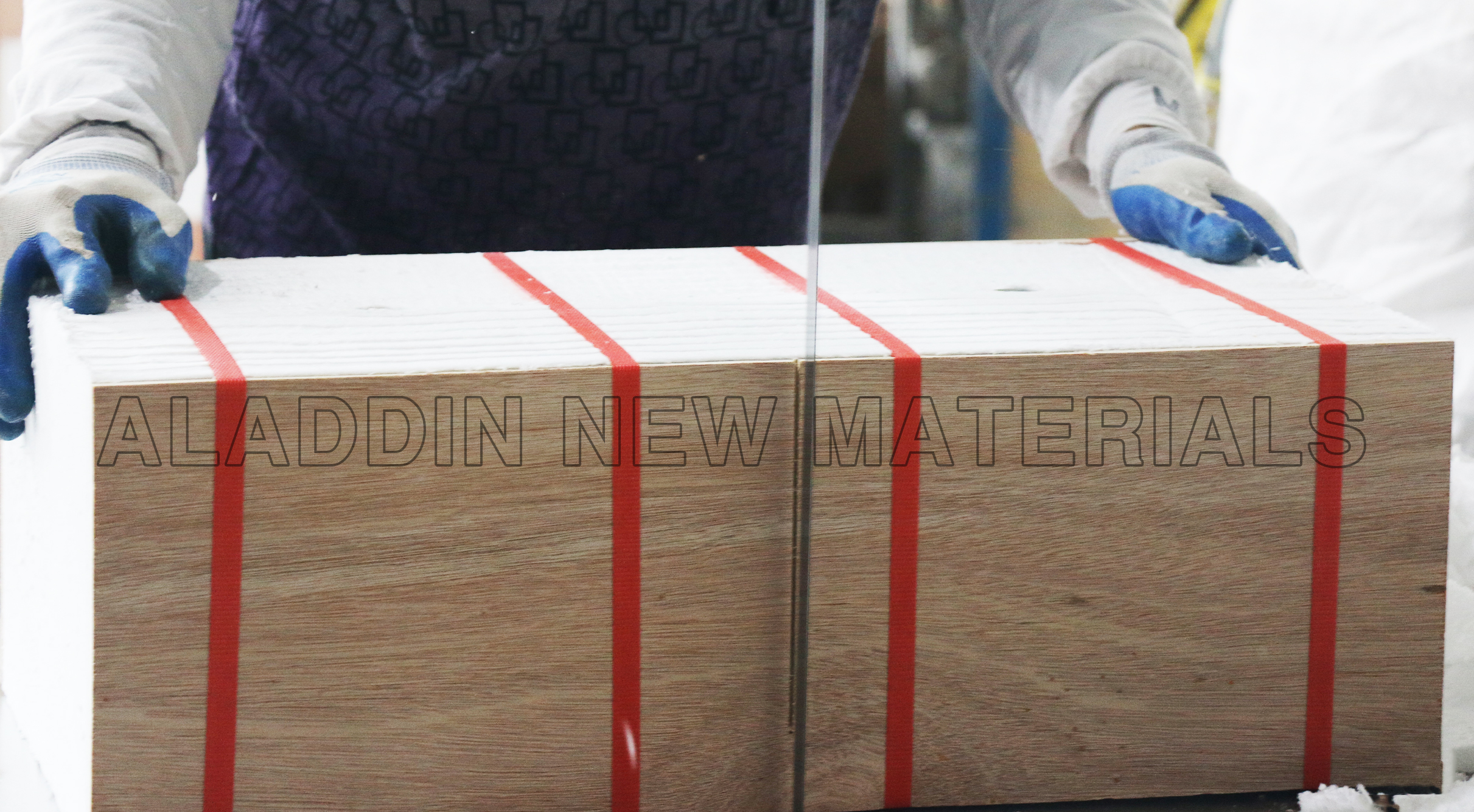

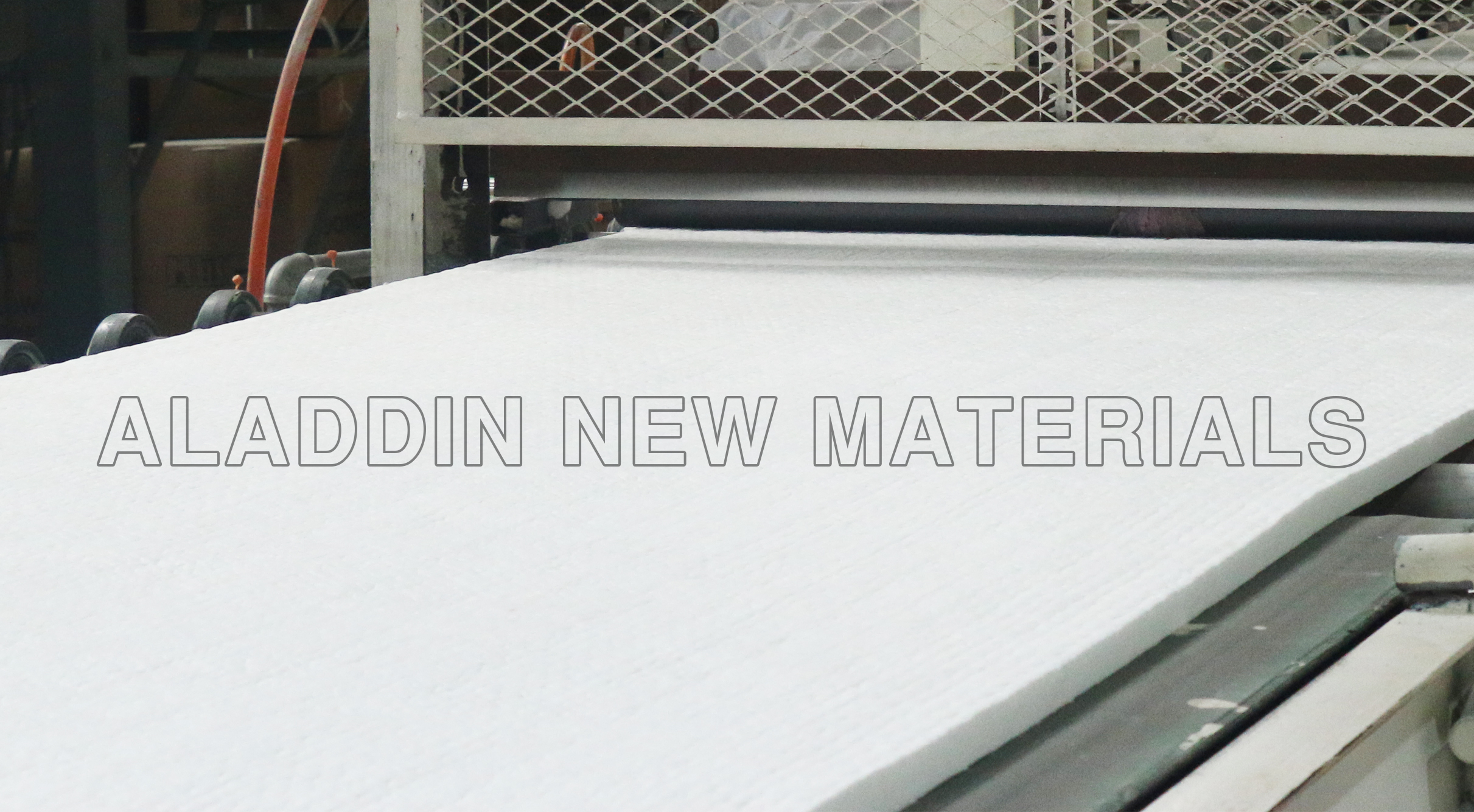

Soft and cotton-like ceramic fiber blanket can be wrapped around pipelines just like gauze, fastened with stainless steel bands or iron wire. Manufactured via double-sided needling process, the blanket boasts excellent resilience to cling tightly to pipe surfaces without any clearance.It features a thermal conductivity of only 0.13 W/(m·K) at 600°C, effectively blocking heat dissipation. Product grades cover standard grade (max service temperature 1260°C) and zirconia-containing grade (max service temperature 1430°C), fully covering all high-temperature pipeline working conditions in petrochemical plants.The blanket allows single-person installation and easy on-site cutting without heavy machinery. Precision Insulation: Custom Ceramic Fiber Shaped Parts for Irregular Joints

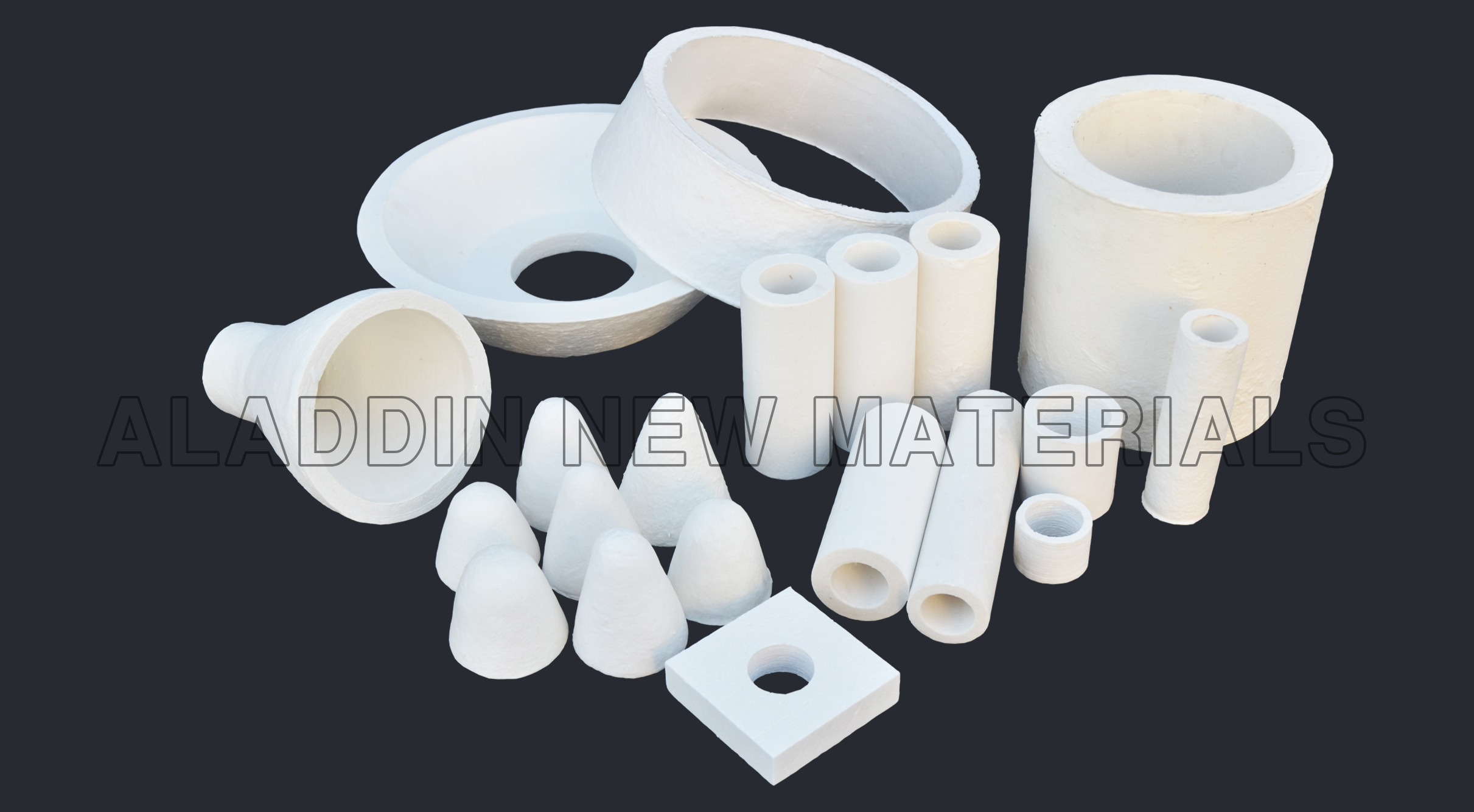

Aladdin custom-molds tailored shaped refractory components for elbows, valves, flange joints, instrument nozzles, burner tips and all complex fittings, including pipe shells, gaskets, plugs, sleeves, risers and more.
Custom fabrication is accurate down to millimeters for direct fitting and gap-free sealing upon installation.Flexible combination of the two products: ceramic fiber blanket for straight pipe sections, custom shaped ceramic fiber parts for irregular fittings. One integrated solution solves all pipeline insulation difficulties.
3. Why Does This "Invisible Thermal Protective Jacket" Perform Excellently?
The strengths of Aladdin ceramic fiber for petrochemical pipeline insulation can be summarized in four core advantages: Lightweight, Flexible, Stable & Cost-saving.
Lightweight: Bulk density only 96–128 kg/m³, a fraction of traditional rigid refractory materials. No pipe sagging or deformation caused by overweight insulation layers, greatly improving safety for overhead pipeline installation.
Flexible: Flexible fiber structure perfectly conforms to all irregular surfaces with zero gaps, an unachievable target for rigid insulation bricks.
Stable Performance: Free of organic binders, featuring outstanding chemical inertness against most industrial chemical corrosion. No pulverization or shrinkage under long-term high-temperature operation, with linear thermal shrinkage controlled within 3%.
Cost-saving: Single-worker installation eliminates large labor crews; insulation layers can be disassembled and reused during maintenance without destructive demolition. Superior thermal insulation efficiency cuts energy consumption significantly. Savings on labor, raw materials and energy consumption are realized simultaneously.
The root cause of petrochemical pipeline insulation troubles lies in the conflict between irregular pipe geometries and inflexible rigid insulation materials.Aladdin’s "flexible fiber blanket + custom molded shaped parts" solution crafts a tailor-made invisible thermal jacket for every pipeline. Large-area wrapping with ceramic fiber blanket plus targeted coverage for irregular fittings eliminates all obstacles for complex pipeline insulation. Aladdin – Make Complex Pipeline Insulation Simple.
With over 40 years of development, Aladdin High-Temperature Materials Co., Ltd. is a professional ceramic fiber refractory manufacturer integrating R&D, production and engineering service. We operate four major production bases across Hebei, Shandong, Shanxi and Jiangsu Provinces, equipped with more than 30 production lines and an annual output exceeding 200,000 tons.
All Aladdin ceramic fiber products come with official test reports complying with national GB standards. If you are interested in our products, please send us a private message or reply with the keyword "PURCHASE" to obtain our contact information.
