In the steel production process, high-temperature equipment such as reheating furnaces, annealing furnaces and heat treatment furnaces are well-known major energy consumers. Furnace linings made of traditional dense refractory bricks feature heavy weight, high heat storage and slow temperature rise, which have become bottlenecks restricting energy efficiency improvement. The advent of ceramic fiber modules offers a practical solution for furnace lining upgrading in the steel industry.
Traditional brick-built furnace linings have long presented three critical problems for steel manufacturers.High thermal inertia and slow startup & shutdown. Dense refractory bricks store large amounts of heat. It takes several hours or more to preheat tons of bricks during cold startup, resulting in poor flexibility for startup and shutdown. This drawback is especially prominent for batch-type furnaces that require frequent cycling.High heat loss via thermal radiation. Brick furnace walls operate at high surface temperatures, with massive heat dissipating directly into the workshop. This not only increases fuel consumption but also worsens working conditions for operators, making workshops extremely hot in summer.Frequent maintenance and high costs. Refractory bricks tend to crack under thermal cycling. Partial replacement is required after a period of service. Each repair incurs material expenses and production downtime, alongside long maintenance cycles.

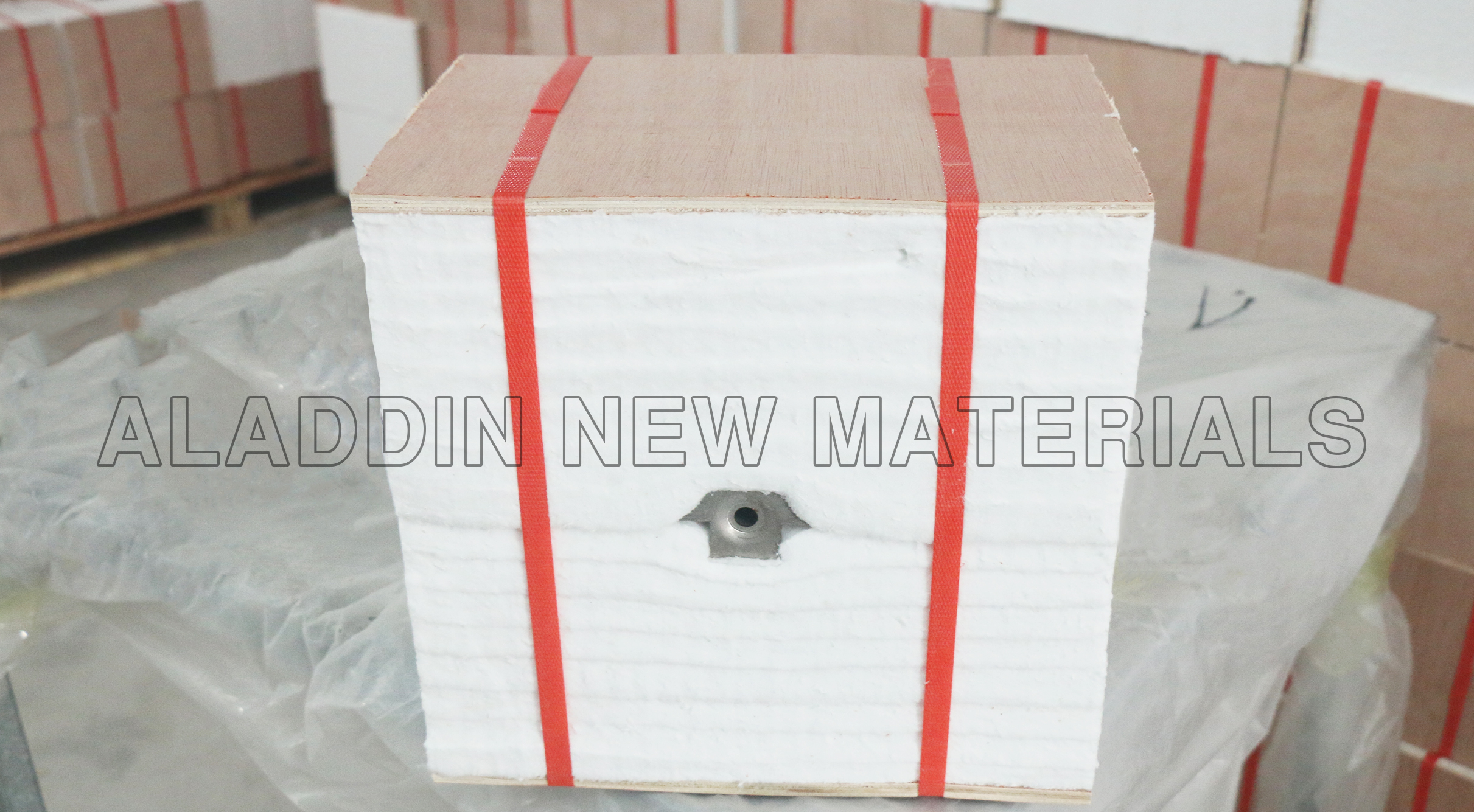

Ceramic fiber modules are fabricated by folding or laminating compressed needle-punched blankets. Equipped with anchoring systems, they can be directly fixed onto furnace shell steel plates. Once binding straps are removed after installation, the modules expand and interlock automatically to form an integral seamless thermal insulation structure.
In insulation furnace retrofits at stainless steel hot rolling mills, replacing conventional linings with all-fiber linings delivers multiple benefits: drastically reduced furnace weight, markedly lower thermal inertia, faster temperature ramp-up and improved furnace temperature uniformity. In addition, installation and maintenance are convenient, and the furnace can be put into service without preheating. Heat storage and heat dissipation losses are effectively controlled.
Steel Reheating FurnacesThis is the most widely adopted application of ceramic fiber modules in the steel sector. Replacing refractory bricks significantly lowers furnace wall temperature and improves thermal conditions in workshops. Startup time is greatly shortened to boost productivity, energy consumption is well controlled, and comprehensive energy-saving benefits are remarkable.

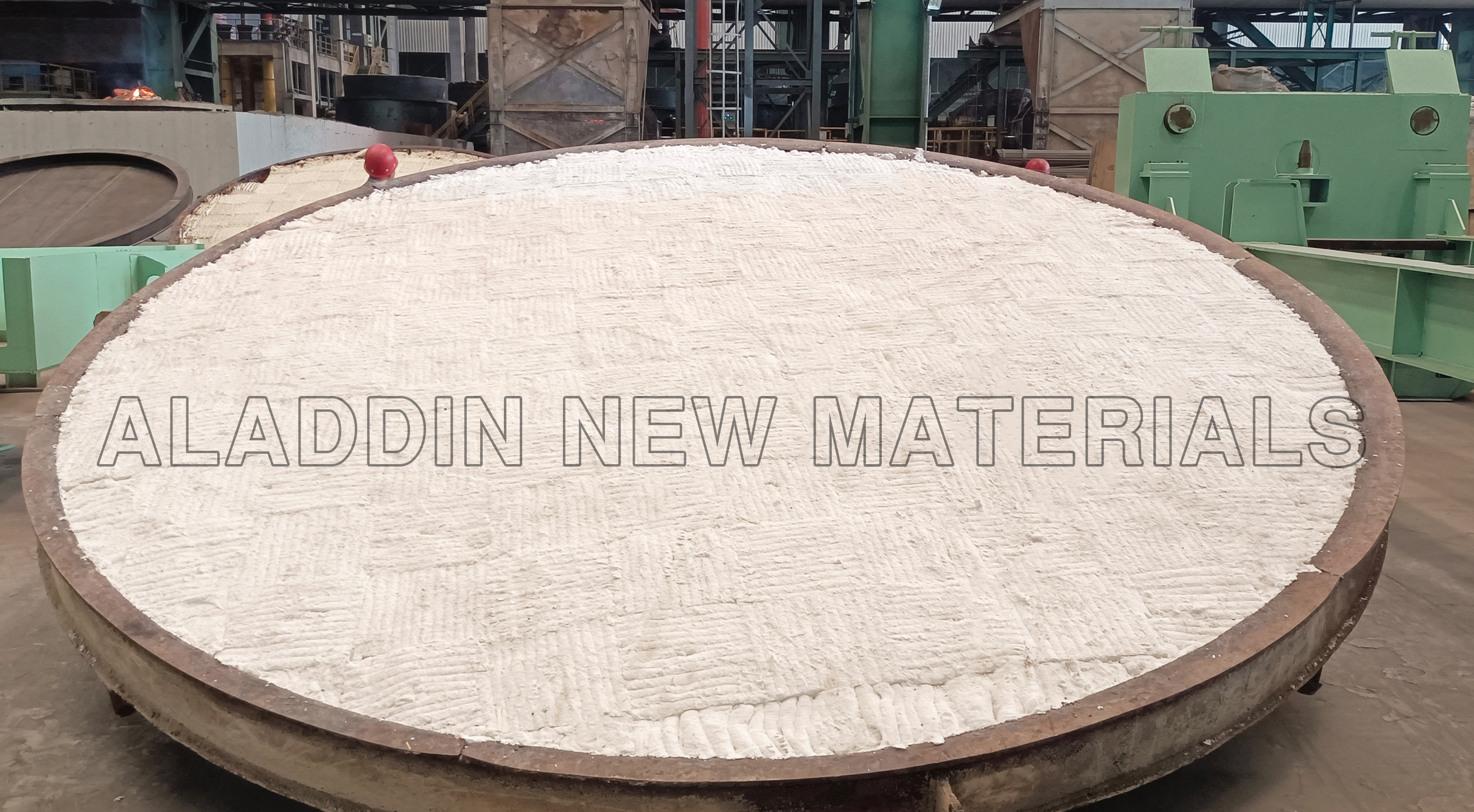

Ladle Covers & Heat Treatment FurnacesModular fiber linings feature excellent sealing performance and strong thermal shock resistance. They are particularly suitable for frequently opened and closed equipment including heat treatment furnaces, bell furnaces and annealing furnaces, capable of enduring repeated thermal cycling shocks.
Modular structure for seamless furnace linings. After installation, modules expand and interlock to eliminate heat leakage through gaps in traditional brick masonry and greatly improve furnace tightness.Anchoring systems set away from the hot face. Metal anchors are located in relatively low-temperature zones, which substantially reduces their operating temperature, extends service life and enhances safety. It lowers the risk of lining detachment caused by anchor failure.Lightweight and low heat capacity with outstanding energy-saving effects. Ceramic fiber modules weigh only a fraction of traditional refractory bricks and have vastly reduced heat storage. When applied in reheating furnaces and similar equipment, they deliver prominent overall energy savings. Meanwhile, loads on the furnace steel structure are reduced and equipment service life is prolonged.
High-temperature facilities in the steel industry are transitioning from heavy brick structures to lightweight fiber structures. With combined strengths of light weight, low heat storage, superior thermal shock resistance and easy installation, ceramic fiber modules have been verified through practical applications at many leading enterprises.
Aladdin has specialized in ceramic fiber for over 40 years. Our full product portfolio covers modules, blankets, boards, custom-shaped components and more. We provide precise material selection and solution design tailored to different furnace types and temperature zones. From material matching to installation guidance, our professional team supports you at every step of furnace lining upgrading. If you are planning energy-saving retrofits for reheating furnaces, annealing furnaces or heat treatment furnaces, please feel free to contact Jiangsu Aladdin High-Temperature Materials Co., Ltd. (Tel: 400-085-8836, Email: aladdin@aldfiber.com). Our technical team will deliver one-stop support from product selection to construction recommendations based on your furnace operating conditions.

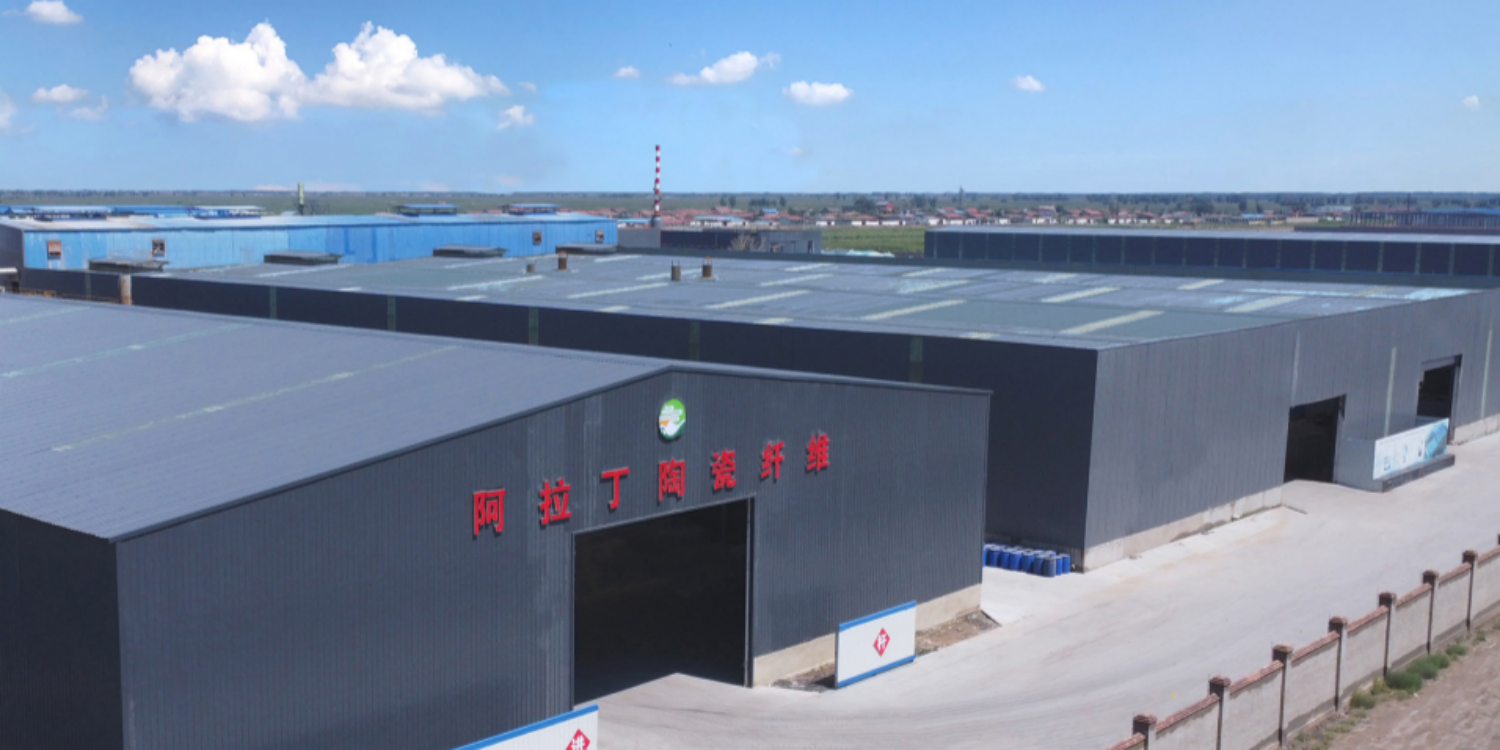

Aladdin High-Temperature Materials Co., Ltd. has developed for more than 40 years as a professional ceramic fiber manufacturer integrating production, R&D and engineering development. We operate four major production bases across China in Hebei, Shandong, Shanxi and Jiangsu, with over 30 production lines and an annual output exceeding 200,000 tons.
All Aladdin ceramic fiber products come with corresponding test reports and comply with Chinese national standards. If you are interested in our products, you may send us private messages or type “Purchase” to obtain our contact information.
